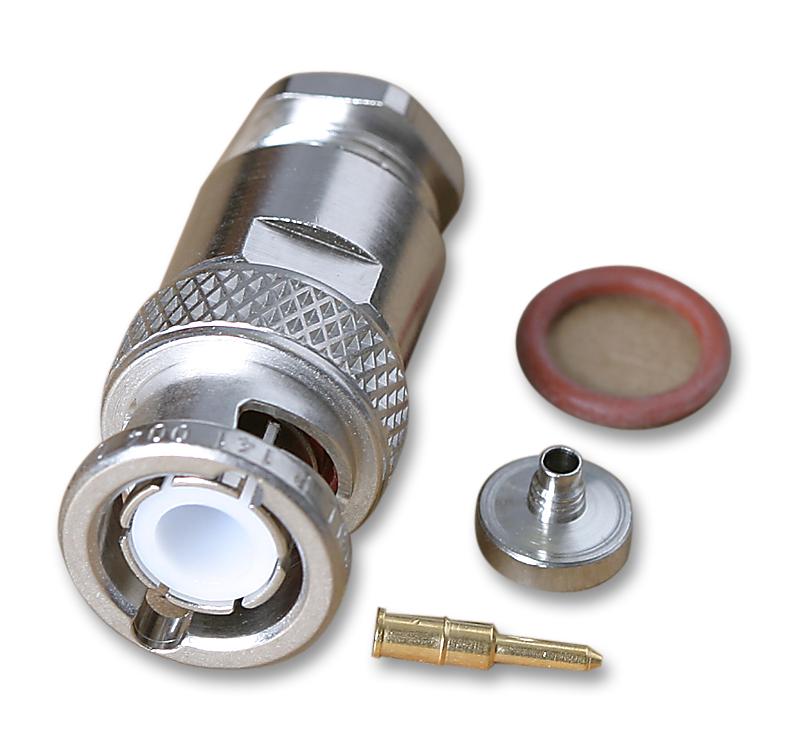

R141018000 RF Coaxial, BNC, Straight Plug, 50ohm RADIALL

RADIALLUGS :R141018000 Code de commande:4194962

Prix:
Prix ​​promotionnel€37,47

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (411 unité)

Documents et téléchargements

description

RADIALL - R141018000 - RF / Coaxial Connector, BNC Coaxial, Straight Plug, Clamp, 50 ohm, RG213, RG214, RG225, RG393

  • Connector Type: BNC Coaxial
  • Connector Body Style: Straight Plug
  • Coaxial Termination: Clamp
  • Impedance: 50ohm
  • Coaxial Cable Types: RG213, RG214, RG225, RG393
  • Contact Material: Brass
  • Contact Plating: Gold over Nickel Plated Contacts
  • Frequency Max: 4GHz
  • Connector Mounting: Cable Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Body Plating: Nickel
  • Coaxial Type: RG119/U, RG165U, RG213/U, RG214/U, RG215/U, RG225/U, RG393, URM67, URM91, URM102, URM112, KX4, KX13, KX24
  • Connector Mounting Orientation: Cable
  • Insulation Resistance: 5000Mohm
  • Material: Brass
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 4GHz
  • Operating Temperature Max: 165°C
  • Operating Temperature Min: -65°C
  • Termination Method: Clamp
  • Voltage Rating VAC: 500V
  • Withstand Voltage: 1500V
