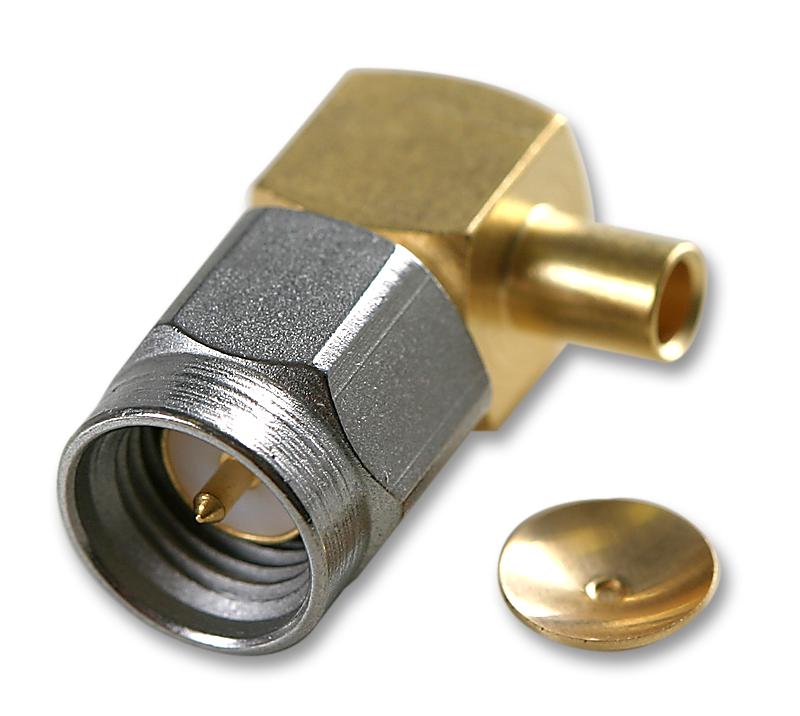

RADIALL - R125153002 - RF / Coaxial Connector, SMA Coaxial, Right Angle Plug, Solder, 50 ohm, RG405, Brass
- Connector Type: SMA Coaxial
- Connector Body Style: Right Angle Plug
- Coaxial Termination: Solder
- Impedance: 50ohm
- Coaxial Cable Types: RG405
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Frequency Max: 12.4GHz
- Connector Mounting: Cable Mount
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Body Plating: Gold
- Coaxial Type: RG405/U, RG405/001, UT141 A, KS2
- Connector Mounting Orientation: Cable
- Insulation Resistance: 5000Mohm
- Material: Brass
- No. of Mating Cycles: 100
- Operating Frequency Max: 12.4kHz
- Operating Temperature Max: 165°C
- Operating Temperature Min: -65°C
- Termination Method: Solder
- Voltage Rating VAC: 250V
- Withstand Voltage: 500V
