R114753000 Adaptor, SMB Plug, SMB Plug, 50ohm RADIALL

RADIALLUGS :R114753000 Code de commande:4194561

Prix:
Prix ​​promotionnel€158,34

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (266 unité)

Documents et téléchargements

description

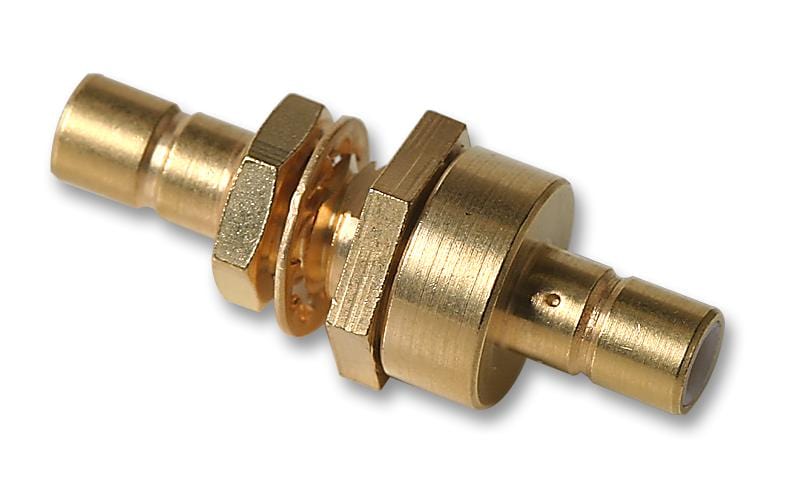

RADIALL - R114753000 - RF / Coaxial Adapter, SMB, Plug, SMB, Plug, Straight Bulkhead Adapter, 50 ohm

  • Convert From Coax Type: SMB
  • Convert From Gender: Plug
  • Convert To Coax Type: SMB
  • Convert To Gender: Plug
  • Adapter Body Style: Straight Bulkhead Adapter
  • Impedance: 50ohm
  • Connector Type: Inter Series Coaxial
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Body Plating: Gold
  • Connector Mounting: Bulkhead Mount
  • Connector Mounting Orientation: Bulkhead
  • Contact Plating: Gold Plated Contacts
  • Insulation Resistance: 1000Mohm
  • No. of Mating Cycles: 500
  • Operating Temperature Max: 165°C
  • Operating Temperature Min: -65°C
  • Voltage Rating VAC: 500V
  • Withstand Voltage: 700V
