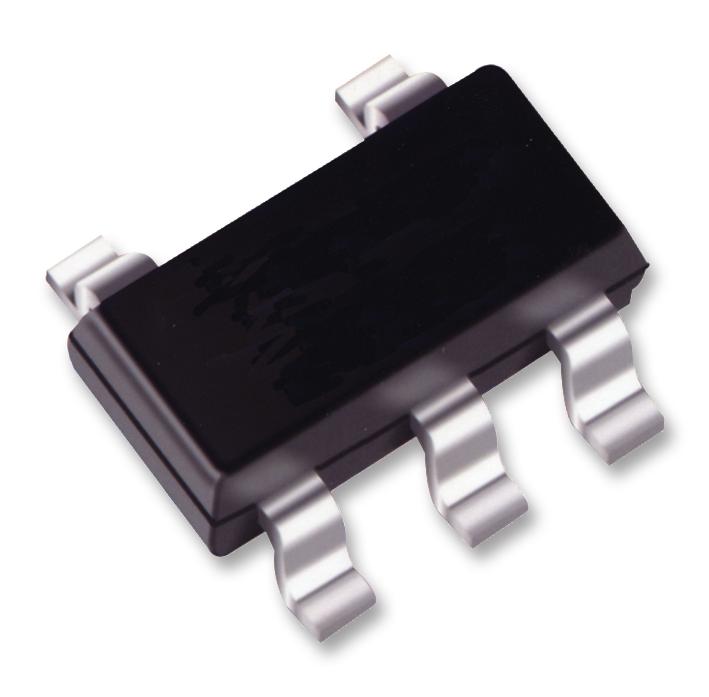

ROHM - QS5U33TR - Power MOSFET, P Channel, 30 V, 2 A, 0.225 ohm, TSMT, Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 2A
- Drain Source Voltage Vds: -30V
- On Resistance Rds(on): 0.225ohm
- Rds(on) Test Voltage Vgs: -10V
- Threshold Voltage Vgs: -2.5V
- Power Dissipation Pd: 1.25W
- Transistor Case Style: TSMT
- No. of Pins: 5Pins
- Operating Temperature Max: -
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Capacitance Ciss Typ: 310pF
- Fall Time tf: 6ns
- Pin Configuration: 1(G),2(S),3(A),4(K),5(D)
- Pulse Current Idm: 8A
- Rise Time: 6ns
- Termination Type: Surface Mount Device
- Transistor Type: Protected MOSFET
- Voltage Vds Typ: -30V
- Voltage Vgs Rds on Measurement: 4V
- Voltage Vgs th Max: -2.5V
- Voltage Vgs th Min: -1V
