PX0941/05/P Plug, Flange, 5WAY Bulgin Limited

BULGIN LIMITEDUGS :PX0941/05/P Code de commande:3136061

Prix:
Prix ​​promotionnel€77,88

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (20 unité)

Documents et téléchargements

description

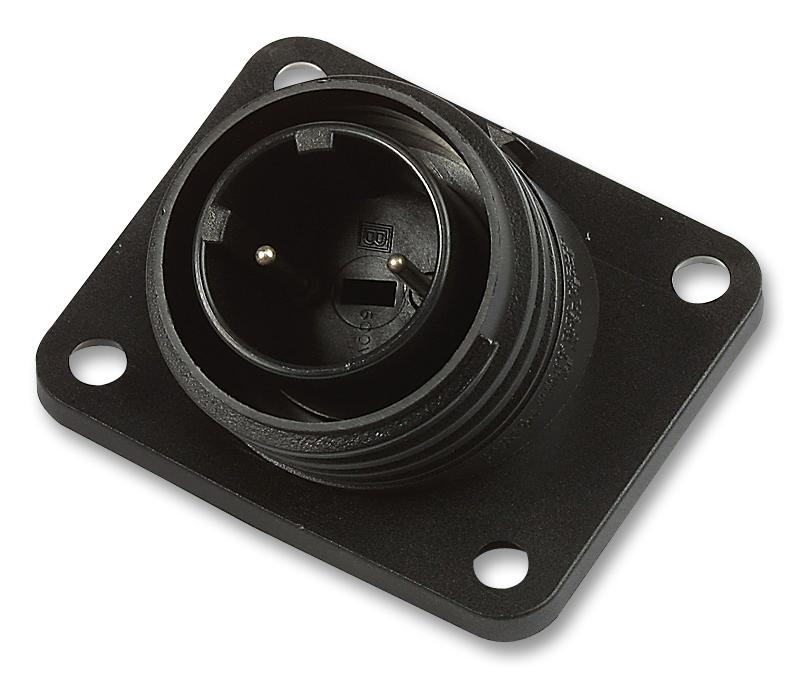

BULGIN LIMITED - PX0941/05/P - Circular Connector, Buccaneer 900 Series, Panel Mount Plug, 5 Contacts, Screw Pin

  • Product Range: Buccaneer 900 Series
  • Circular Connector Shell Style: Panel Mount Plug
  • No. of Contacts: 5Contacts
  • Circular Contact Type: Screw Pin
  • Coupling Style: -
  • Connector Body Material: Nylon (Polyamide) Body
  • Connector Body Plating: -
  • Contact Material: Brass
  • Contact Plating: Nickel
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Category: UL 94V-0
  • Connector Mounting: Panel Mount
  • Connector Type: Circular Industrial
  • Contact Gender: Pin
  • Contact Plating: Nickel Plated Contacts
  • Contact Resistance: 10mohm
  • Contact Termination: Screw
  • Contact Termination Type: Screw
  • Current Rating: 32A
  • External Depth: 60mm
  • External Length / Height: 51mm
  • External Width: 70mm
  • Gender: Plug
  • IP / NEMA Rating: IP68
  • Insulation Resistance: 5Mohm
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Voltage Rating V DC: 600V
  • Voltage Rating VAC: 600V
  • Wire Area Size Max: 4mm²
  • Wire Area Size Min: 2.5mm²
  • Working Voltage: 600V
