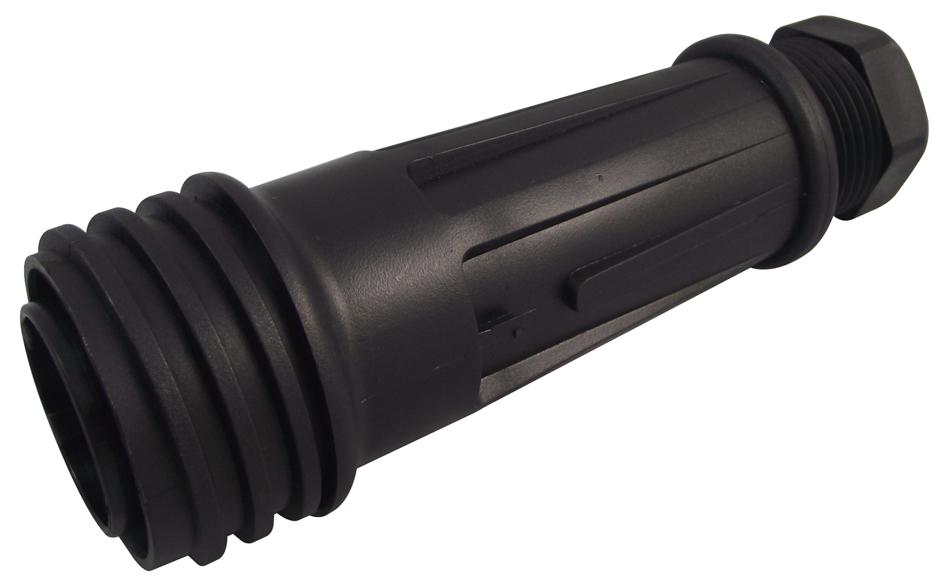

BULGIN LIMITED - PX0921/04/P - Circular Connector, Buccaneer 900 Series, Cable Mount Plug, 4 Contacts, Screw Pin
- Product Range: Buccaneer 900 Series
- Circular Connector Shell Style: Cable Mount Plug
- No. of Contacts: 4Contacts
- Circular Contact Type: Screw Pin
- Coupling Style: -
- Connector Body Material: Nylon (Polyamide) Body
- Connector Body Plating: -
- Contact Material: Brass
- Contact Plating: Nickel
- SVHC: No SVHC (27-Jun-2018)
- Approval Category: UL 94V-0
- Connector Mounting: Cable Mount
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Contact Plating: Nickel Plated Contacts
- Contact Resistance: 10mohm
- Contact Termination: Screw
- Contact Termination Type: Screw
- Current Rating: 32A
- External Length / Height: 127mm
- External Width: 46mm
- Flammability Rating: UL94V-0
- Gender: Plug
- IP / NEMA Rating: IP68
- Insulation Resistance: 5Mohm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Voltage Rating V DC: 600V
- Voltage Rating VAC: 600V
- Wire Area Size Max: 4mm²
- Wire Area Size Min: 2.5mm²
- Working Voltage: 600V
