Circular Industrial & MIL Spec
PX0921/02/S SOCKET, IN-LINE, 2WAY BULGIN LIMITED
Survolez l'image pour zoomer Cliquez sur l'image pour zoomer
PX0921/02/S SOCKET, IN-LINE, 2WAY BULGIN LIMITED

PX0921/02/S SOCKET, IN-LINE, 2WAY BULGIN LIMITED

BULGIN LIMITEDUGS :PX0921/02/S Code de commande:3135913
Prix:
€43,87

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (94 unité)

Documents et téléchargements

Fiche produit

description

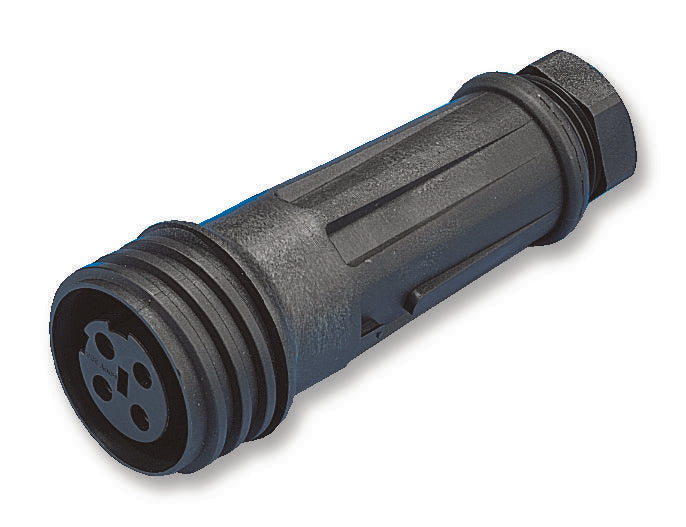

BULGIN LIMITED - PX0921/02/S - Circular Connector, Buccaneer 900 Series, Cable Mount Receptacle, 2 Contacts, Screw Socket

  • Product Range: Buccaneer 900 Series
  • Circular Connector Shell Style: Cable Mount Receptacle
  • No. of Contacts: 2Contacts
  • Circular Contact Type: Screw Socket
  • Coupling Style: -
  • Connector Body Material: Nylon (Polyamide) Body
  • Connector Body Plating: -
  • Contact Material: Brass
  • Contact Plating: Nickel
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Category: UL 94V-0
  • Connector Mounting: Cable Mount
  • Connector Type: Circular Industrial
  • Contact Gender: Socket
  • Contact Plating: Nickel Plated Contacts
  • Contact Resistance: 10mohm
  • Contact Termination: Screw
  • Contact Termination Type: Screw
  • Current Rating: 32A
  • External Length / Height: 127mm
  • External Width: 46mm
  • Flammability Rating: UL94V-0
  • Gender: Receptacle
  • IP / NEMA Rating: IP68
  • Insulation Resistance: 5Mohm
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Voltage Rating V DC: 600V
  • Voltage Rating VAC: 600V
  • Wire Area Size Max: 4mm²
  • Wire Area Size Min: 2.5mm²
  • Working Voltage: 600V
