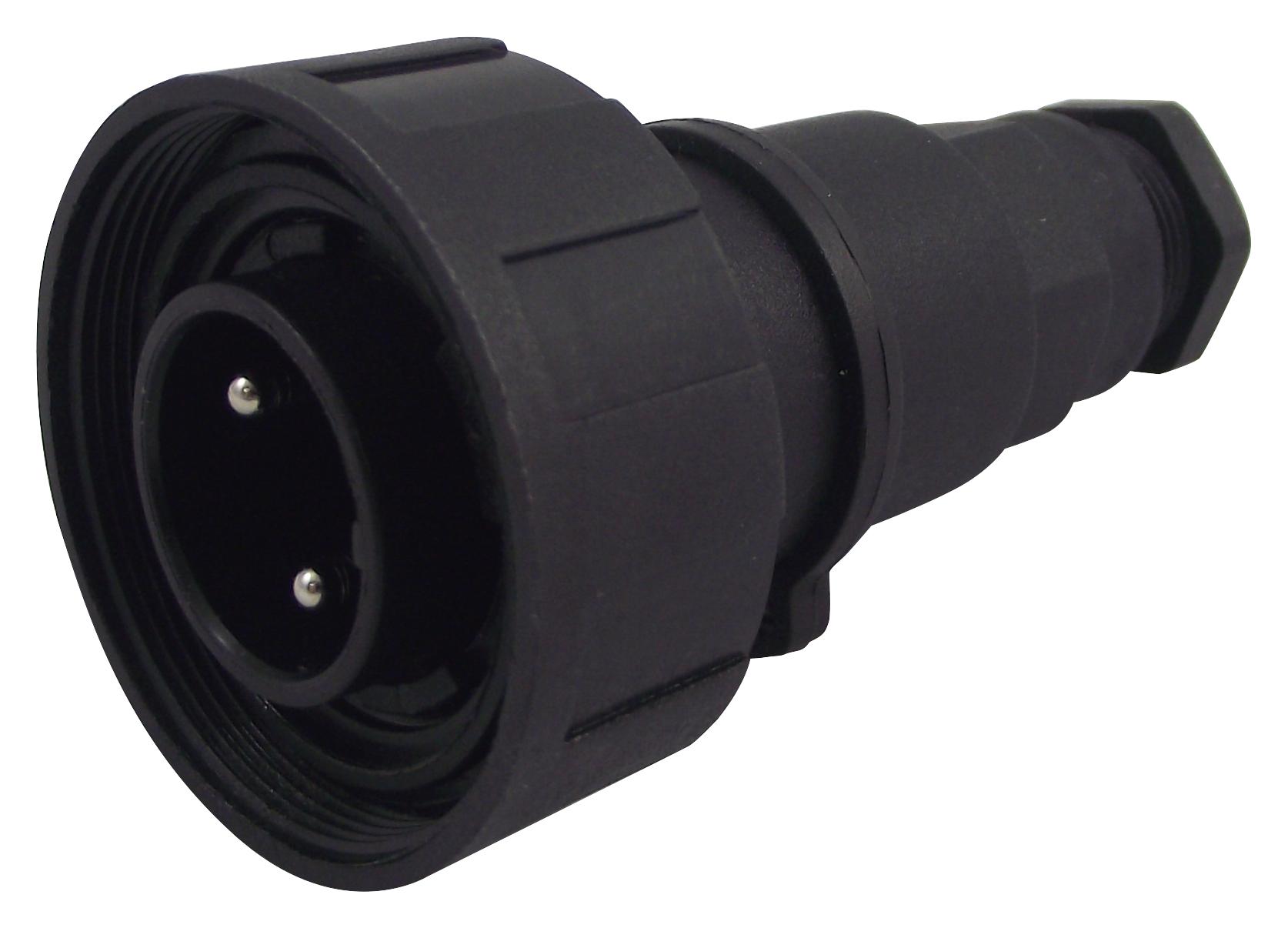

PX0736/P Circular Connector, Plug, 2 Way, Cable Bulgin Limited

BULGIN LIMITEDUGS :PX0736/P Code de commande:314183

Prix:
Prix ​​promotionnel€29,20

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (971 unité)

Documents et téléchargements

description

BULGIN LIMITED - PX0736/P - Circular Connector, Buccaneer Standard Series, Cable Mount Plug, 2 Contacts, Screw Pin

  • Product Range: Buccaneer Standard Series
  • Circular Connector Shell Style: Cable Mount Plug
  • No. of Contacts: 2Contacts
  • Circular Contact Type: Screw Pin
  • Coupling Style: -
  • Connector Body Material: Nylon (Polyamide), Glass Filled Body
  • Connector Body Plating: -
  • Contact Material: Brass
  • Contact Plating: Nickel
  • SVHC: No SVHC (27-Jun-2018)
  • Cable Diameter Max: 8mm
  • Cable Diameter Min: 6mm
  • Connector Mounting: Cable Mount
  • Connector Type: Circular Industrial
  • Contact Gender: Pin
  • Contact Plating: Nickel Plated Contacts
  • Contact Resistance Max: 10mohm
  • Contact Termination: Screw
  • Contact Termination Type: Screw
  • Current Rating: 10A
  • External Diameter: 38.1mm
  • External Length / Height: 69mm
  • Flammability Rating: UL94V-0
  • Gender: Plug
  • IP / NEMA Rating: IP68
  • Material: Black nylon
  • Moulding Material: Glass Filled Nylon
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Voltage Rating VAC: 250V
  • Working Voltage: 277V
