PX0410/12P/6065 Plug, Free, 12WAY Bulgin Limited

BULGIN LIMITEDUGS :PX0410/12P/6065 Code de commande:3840979

Prix:
Prix ​​promotionnel€18,66

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (136 unité)

Documents et téléchargements

description

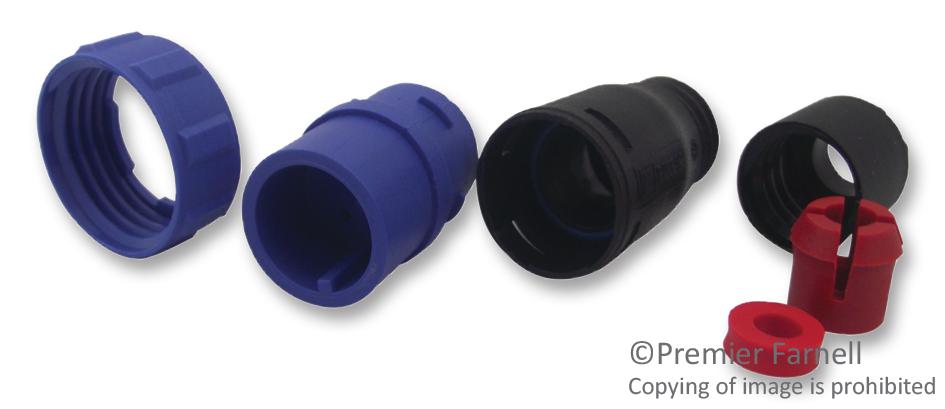

BULGIN LIMITED - PX0410/12P/6065 - Circular Connector, IP68, Buccaneer 400 Series, Cable Mount Plug, 12 Contacts

  • Product Range: Buccaneer 400 Series
  • Circular Connector Shell Style: Cable Mount Plug
  • No. of Contacts: 12Contacts
  • Circular Contact Type: Crimp / Solder Pin - Contacts Not Supplied
  • Coupling Style: Threaded
  • Connector Body Material: Nylon (Polyamide) Body
  • Connector Body Plating: -
  • Contact Material: -
  • Contact Plating: -
  • SVHC: No SVHC (27-Jun-2018)
  • Cable Diameter Max: 6.5mm
  • Cable Diameter Min: 6mm
  • Connector Mounting: Cable Mount
  • Connector Type: Circular Industrial
  • Contact Gender: Pin
  • Contact Resistance: 5mohm
  • Current Rating: 1A
  • Flammability Rating: UL94V-0
  • Gender: Plug
  • IP / NEMA Rating: IP68
  • Insulation Resistance: 10Mohm
  • No. of Positions: 12Ways
  • O Ring Material: Nitrile
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Voltage Rating VAC: 50V
  • Wire Size AWG Max: 24AWG
  • Wire Size AWG Min: 28AWG
  • Working Voltage: 50V
