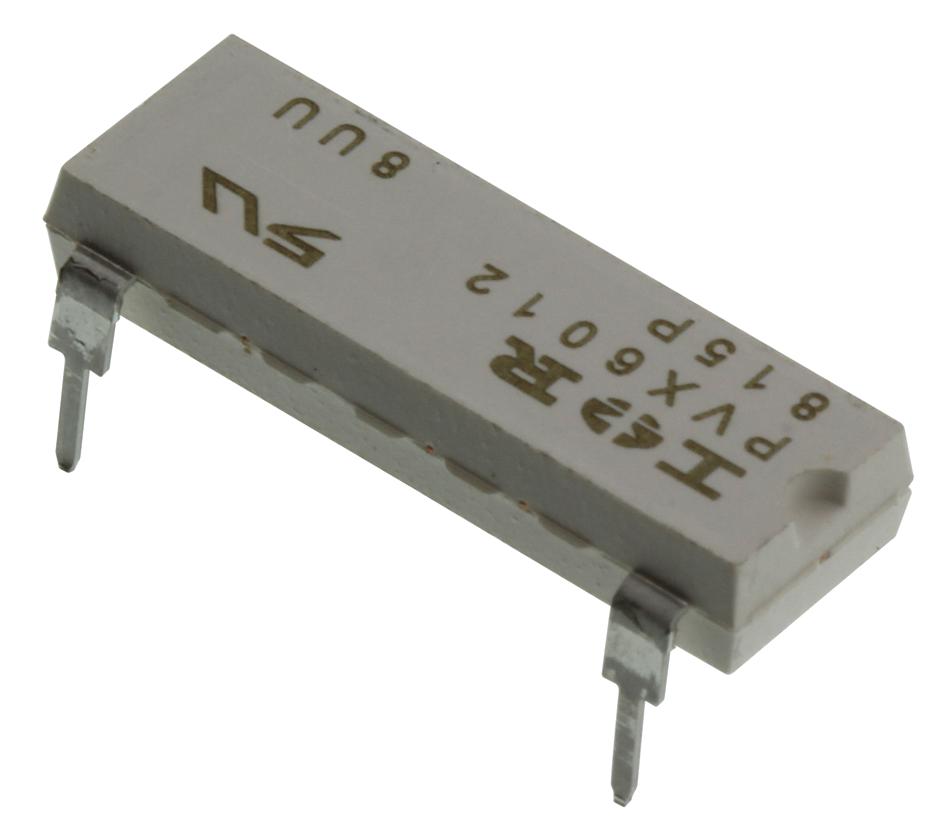

INFINEON - PVX6012PBF - MOSFET Relay, 400 VDC, 1 A, SPST-NO
- Contact Configuration: SPST-NO
- Load Current: 1A
- Relay Terminals: Through Hole
- Load Voltage Max: 400VDC
- On State Resistance Max: -
- Isolation Voltage: 3.75kV
- Forward Current If: 25mA
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 6012
- Control Current Max: 25mA
- Control Current Typ: 0.4mA
- Control Voltage Type: DC
- Current Load AC Max: 1mA
- Current Temperature: 40°C
- Dielectric Strength Voltage Vrms: 3750V
- Insulation Resistance: 10Gohm
- Load Current DC Max: 1mA
- Load Current Max: 1A
- Load Current RMS Max: 1A
- Load Voltage DC Max: 400V
- Load Voltage DC Min: 0VDC
- Load Voltage Range: 0V AC to 280V AC, 0V DC to 400V DC
- No. of Pins: 4Pins
- Nominal Control Current DC: 5mA
- Off State Resistance Min: 0.04Gohm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Voltage V(pk) Max: 400V
- Peak Load Voltage +: 400V
- Peak Load Voltage -: 400V
- RMS Load Voltage Max: 280VAC
- RMS Load Voltage Min: 0VAC
- Response Time Off Max: 1000µs
- Response Time On Max: 7000µs
