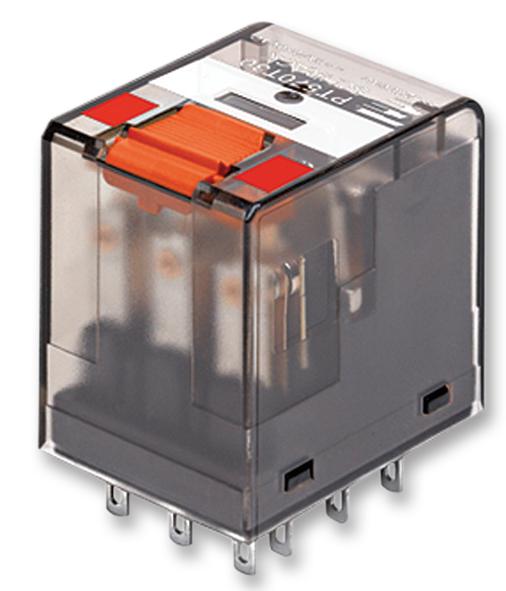

SCHRACK - TE CONNECTIVITY - 9-1419111-8 - Power Relay, 4PDT, 230 VAC, 6 A, PT, Through Hole, Non Latching
- Contact Configuration: 4PDT
- Coil Voltage: 230VAC
- Contact Current: 6A
- Product Range: PT Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 240VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver
- Coil Resistance: 19.465kohm
- SVHC: No SVHC (15-Jan-2018)
- AC Coil Power: 1VA
- Approvals & Standards: UL, VDE
- Coil Current: 4.3mA
- Coil Voltage VAC Nom: 230V
- Contact Current AC Max: 6A
- Contact Current Max: 6A
- Contact Voltage AC Max: 230V
- Contact Voltage AC Nom: 250V
- DC Coil Power: 750mW
- External Depth: 29mm
- External Height: 28mm
- External Length / Height: 28mm
- External Width: 22.5mm
- Nom Operating Power: 1VA
- Operating Temperature Max: 70°C
- Operating Temperature Min: -45°C
- Operating Time: 15ms
- Relay Type: Power
- Release Time: 10ms
