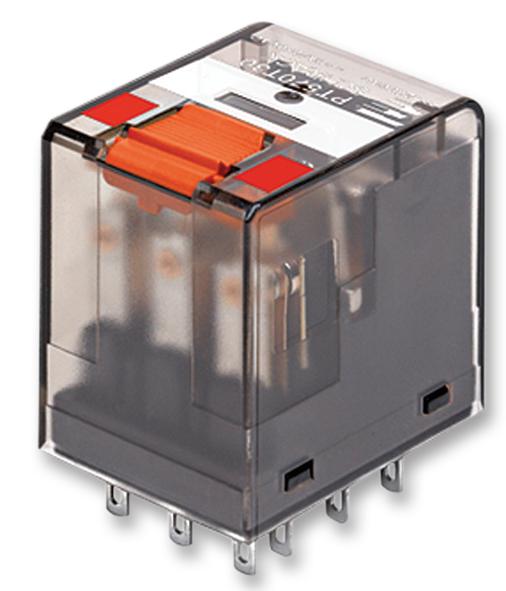

PT571024 Relay, 4PDT, 240Vac, 6a SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYUGS :PT571024 Code de commande:3072824

Prix:
Prix ​​promotionnel€15,36

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (311 unité)

Documents et téléchargements

description

SCHRACK - TE CONNECTIVITY - 9-1419111-3 - Power Relay, 4PDT, 24 VDC, 6 A, PT, Through Hole, Non Latching

  • Contact Configuration: 4PDT
  • Coil Voltage: 24VDC
  • Contact Current: 6A
  • Product Range: PT Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 240VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 777ohm
  • SVHC: No SVHC (15-Jan-2018)
  • AC Coil Power: 1VA
  • Approvals & Standards: UL, VDE
  • Coil Current: 31.3mA
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 6A
  • Contact Current DC Max: 6A
  • Contact Current Max: 6A
  • Contact Voltage AC Max: 230V
  • Contact Voltage AC Nom: 250V
  • DC Coil Power: 750mW
  • External Depth: 29mm
  • External Height: 28mm
  • External Length / Height: 28mm
  • External Width: 22.5mm
  • Nom Operating Power: 750mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -45°C
  • Operating Time: 15ms
  • Relay Type: General Purpose
  • Release Time: 10ms
