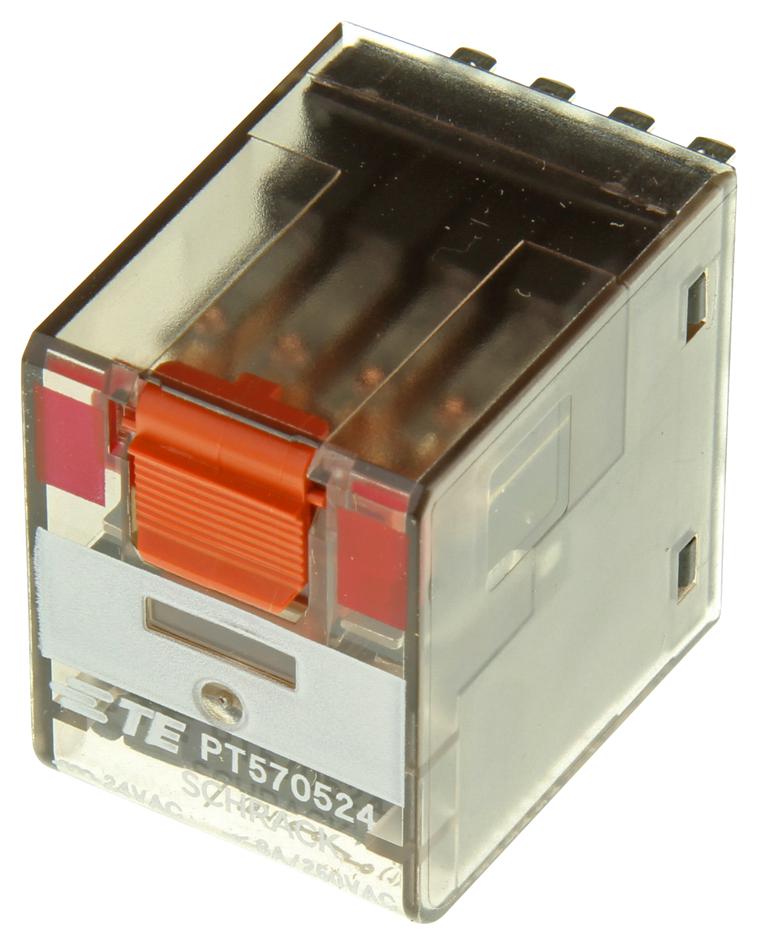

SCHRACK - TE CONNECTIVITY - 8-1419111-7 - General Purpose Relay, PT Series, Power, Non Latching, 4PDT, 24 VAC, 6 A
- Contact Configuration: 4PDT
- Coil Voltage: 24VAC
- Contact Current: 6A
- Product Range: PT Series
- Relay Mounting: Socket
- Coil Type: Non Latching
- Contact Voltage VAC: 240VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: -
- Contact Material: Silver
- Coil Resistance: 192ohm
- SVHC: No SVHC (15-Jan-2018)
- AC Coil Power: 1VA
- Approval Bodies: LLOYDS, VDE
- Approval Category: UL Recognised
- Approvals & Standards: UL, VDE
- Coil Voltage VAC Nom: 24V
- Contact Current AC Max: 6A
- Contact Current DC Max: 12A
- Contact Current Max: 6A
- Contact Voltage AC Max: 230V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 230V
- Contact Voltage DC Nom: 110V
- DC Coil Power: 750mW
- Dielectric Voltage Coil to Contact: 2500VAC
- Dielectric Voltage Contact to Contact: 1200VAC
- External Depth: 29mm
- External Height: 28mm
- External Length / Height: 28mm
- External Width: 22.5mm
- Must Actuate Voltage: 19.2V
- Must Release Voltage: 7.2V
- Nom Operating Power: 1VA
- Operating Temperature Max: 70°C
- Operating Time: 15ms
