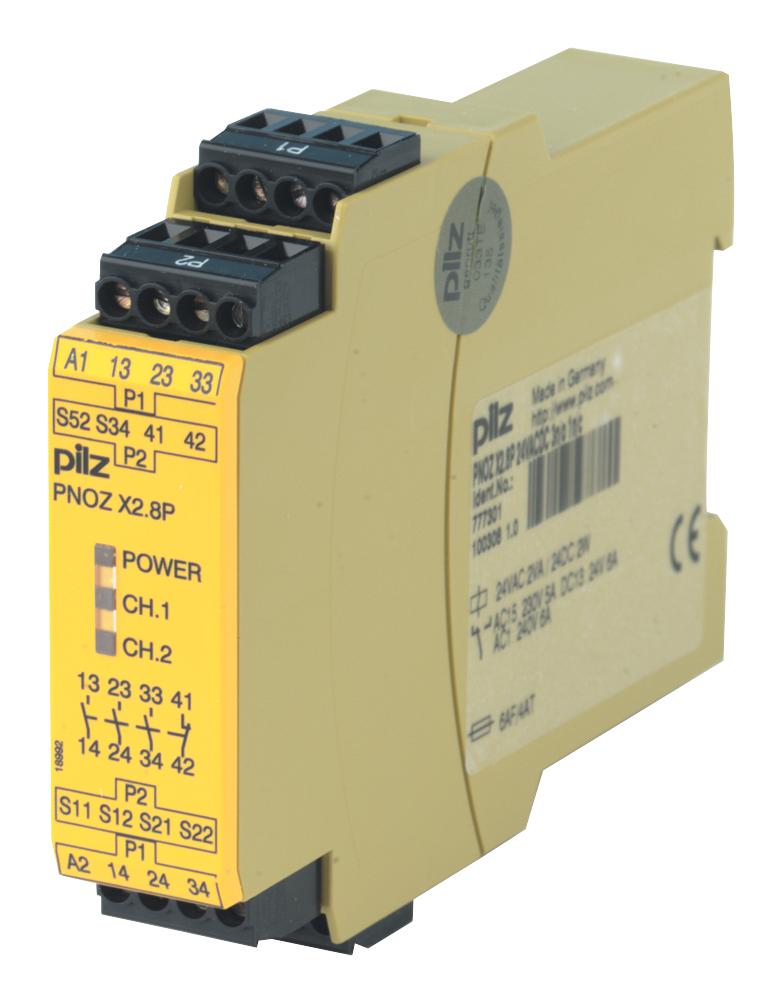

PNOZ x2.8P 24Vac/DC Relay, Safety, 3PST-NO, 240Vac, 6a PILZ

PILZUGS :PNOZ X2.8P 24VAC/DC Code de commande:4439340

Prix:
Prix ​​promotionnel€318,47

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (103 unité)

Documents et téléchargements

description

PILZ - PNOZ X2.8P 24VAC/DC - Safety Relay, 24 V, 3PST-NO, PNOZ X2.8, DIN Rail, 6 A, Screw

  • Coil Voltage: 24V
  • Contact Configuration: 3PST-NO
  • Product Range: PNOZ X2.8 Series
  • Relay Mounting: DIN Rail
  • Contact Current: 6A
  • Relay Terminals: Screw
  • Contact Voltage AC Nom: 240V
  • Contact Voltage DC Nom: 24V
  • Contact Material: Silver Copper Nickel
  • IP Rating: IP20, IP40, IP54
  • SVHC: No SVHC (15-Jan-2019)
  • Approvals / Standards: EN 60204, EN 60947, EN 62061, IEC 61511, ISO 13849
  • Coil Voltage VAC Nom: 24V
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 6A
  • DC Coil Power: 2W
  • Delay: 100ms
  • External Depth: 121mm
  • External Height: 94mm
  • External Length / Height: 87mm
  • External Width: 22.5mm
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -10°C
  • Performance Level: PL e
  • Power Consumption: 3.5VA
  • Protection Type: IP54
  • Safety Category: Level 4
  • Safety Integrity Level: SIL3, SIL CL3
