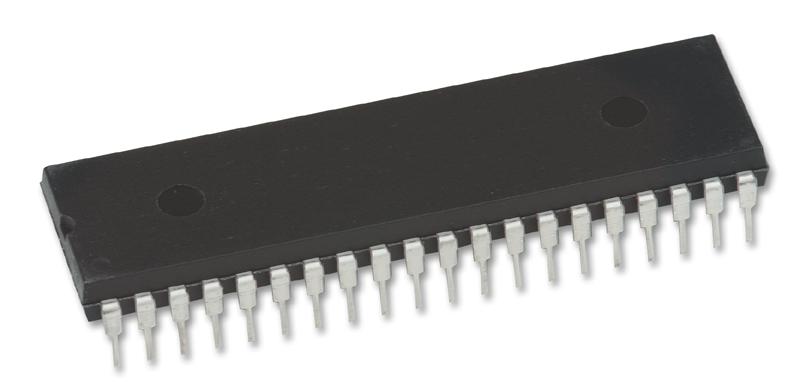

MICROCHIP - PIC18F4321-I/P - 8 Bit MCU, Flash, PIC18 Family PIC18F43xx Series Microcontrollers, 40 MHz, 8 KB, 512 Byte, 40 Pins
- Product Range: PIC18 Family PIC18F43xx Series Microcontrollers
- CPU Speed: 40MHz
- Program Memory Size: 8KB
- RAM Memory Size: 512Byte
- No. of Pins: 40Pins
- MCU Case Style: DIP
- No. of I/O's: 36I/O's
- Embedded Interface Type: EUSART, I2C, PSP, SPI
- Supply Voltage Min: 4.2V
- Supply Voltage Max: 5.5V
- MCU Family: PIC18
- MCU Series: PIC18F43xx
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Clock Frequency: 32MHz
- Controller Family/Series: PIC18F4xxx
- EEPROM Memory Size: 256Byte
- Flash Memory Size: 8KB
- IC Generic Number: 18F4321
- Logic Function Number: 18F4321
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: WDT, ADC, PBOR, EUSART, LIN, SPI, I2C
- No. of ADC Inputs: 13
- No. of Bits: 8bit
- No. of PWM Channels: 5
- No. of Timers: 4
- Number of bits in ADC: 10
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
