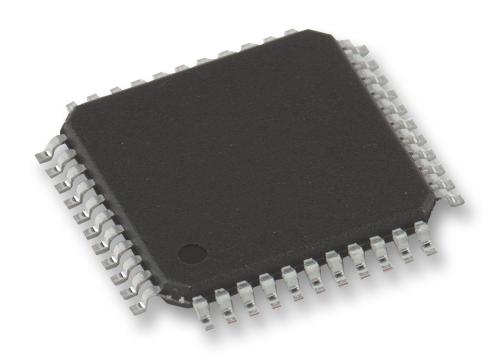

MICROCHIP - PIC16F914-I/PT - 8 Bit MCU, Flash, PIC16 Family PIC16F9XX Series Microcontrollers, 20 MHz, 7 KB, 44 Pins, TQFP
- Product Range: PIC16 Family PIC16F9XX Series Microcontrollers
- CPU Speed: 20MHz
- Program Memory Size: 7KB
- RAM Memory Size: 256Byte
- No. of Pins: 44Pins
- MCU Case Style: TQFP
- No. of I/O's: 35I/O's
- Embedded Interface Type: AUSART, I2C, SPI
- Supply Voltage Min: 2V
- Supply Voltage Max: 5.5V
- MCU Family: PIC16
- MCU Series: PIC16F9xx
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC16F
- EEPROM Memory Size: 256Byte
- Flash Memory Size: 7KB
- IC Generic Number: 16
- IC Temperature Range: Industrial
- Lead Spacing: 0.5mm
- Logic Function Number: 16F914
- MPU Core Size: 8bit
- Memory Type: Flash
- No. of ADC Inputs: 8
- No. of Bits: 8bit
- No. of External Interrupts: 1
- No. of Outputs: 34Outputs
- No. of PWM Channels: 2
- No. of Timers: 3
- Number of bits In Timer: 16
- Number of bits in ADC: 10
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
