description

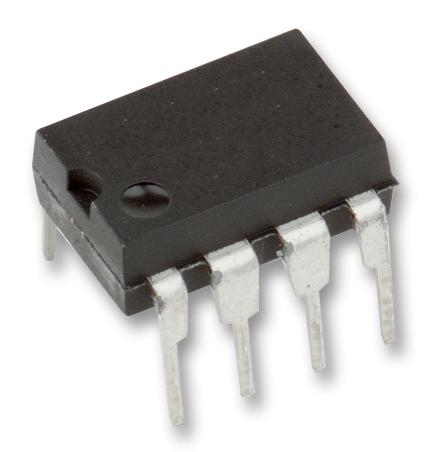

MICROCHIP - PIC12F683-I/P - 8 Bit MCU, Flash, PIC12 Family PIC12F6xx Series Microcontrollers, 20 MHz, 3.5 KB, 128 Byte, 8 Pins
- Product Range: PIC12 Family PIC12F6xx Series Microcontrollers
- CPU Speed: 20MHz
- Program Memory Size: 3.5KB
- RAM Memory Size: 128Byte
- No. of Pins: 8Pins
- MCU Case Style: DIP
- No. of I/O's: 6I/O's
- Embedded Interface Type: -
- Supply Voltage Min: 2V
- Supply Voltage Max: 5.5V
- MCU Family: PIC12
- MCU Series: PIC12F6xx
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC12F6xx
- EEPROM Memory Size: 256Byte
- Flash Memory Size: 3.5KB
- IC Generic Number: 12F683
- IC Temperature Range: Industrial
- Logic Function Number: 12F683
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: BOR, ICSP, CCP, COMPARATOR, ADC
- No. of ADC Inputs: 4
- No. of PWM Channels: 1
- No. of Timers: 3
- Number of bits In Timer: 16
- Number of bits in ADC: 10
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
