PESD12VS1UB,115 Diode, TVs, Sod-523 NEXPERIA

NEXPERIAUGS :PESD12VS1UB,115 Code de commande:8737371

Prix:
Prix ​​promotionnel€0,56

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (6678 unité)

Documents et téléchargements

description

NEXPERIA - PESD12VS1UB,115 - ESD Protection Device, TVS, 15 V, SOD-523, 2 Pins, 12 V, PESD1

  • Clamping Voltage Vc Max: 15V

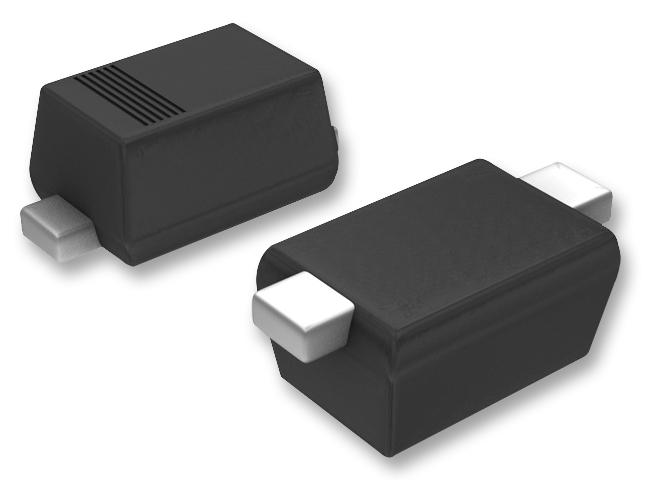

  • Diode Case Style: SOD-523
  • No. of Pins: 2Pins
  • Operating Voltage: 12V
  • Power Dissipation Pd: -
  • Product Range: PESD1 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Breakdown Voltage: 15V
  • Breakdown Voltage Max: 15.3V
  • Breakdown Voltage Min: 14.7V
  • Breakdown Voltage Range: 14.7V to 15.3V
  • Breakover Voltage Min: 14.7V
  • Capacitance Cd @ Vr Max: 75pF
  • Capacitance Cd @ Vr Typ: 38pF
  • Clamping Voltage @ 8/20µs Max: 35V
  • Diode Type: Unidirectional TVS
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Peak Pulse Current Ippm: 5A
  • Peak Pulse Power Dissipation: 180W
  • Pin Configuration: 1
  • Reverse Stand-Off Voltage Vrwm: 12V
  • SMD Marking: N3
  • Stand-off Voltage: 12V
  • TVS Polarity: Unidirectional
