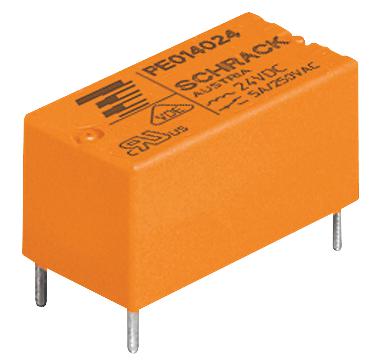

TE CONNECTIVITY - 3-1415390-1 - General Purpose Relay, PE bistable Series, Power, Latching Single Coil, SPDT, 12 VDC, 5 A
- Contact Configuration: SPDT
- Coil Voltage: 12VDC
- Contact Current: 5A
- Product Range: PE bistable Series
- Relay Mounting: Through Hole
- Coil Type: Latching Single Coil
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 650ohm
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: VDE
- Approval Category: UL Recognised
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 5A
- Contact Current Max: 5A
- Contact Voltage AC Max: 240V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- Current Rating: 5A
- DC Coil Power: 200mW
- Dielectric Voltage Coil to Contact: 4000VAC
- Dielectric Voltage Contact to Contact: 1000VAC
- External Depth: 10mm
- External Height: 10mm
- External Length / Height: 10mm
- External Width: 20mm
- Must Actuate Voltage: 3.75VDC
- No. of Pins: 5Pins
- Nom Operating Power: 222VA
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Relay Type: Power
