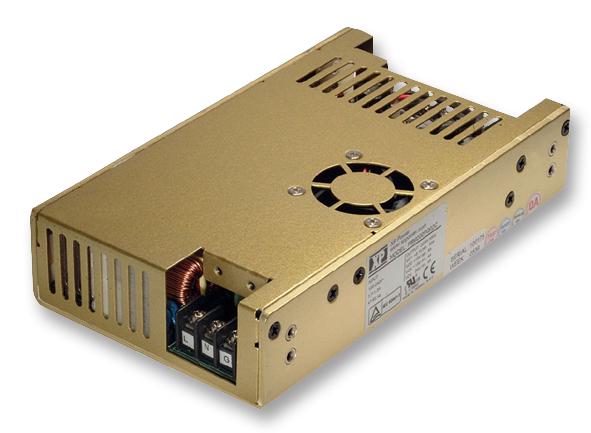

XP POWER - PBM300PS24-C - AC/DC Enclosed Power Supply (PSU), Medical, 1 Outputs, 300 W, 24 V, 12.5 A
- No. of Outputs: 1Outputs
- Output Power Max: 300W
- Output Voltage - Output 1: 24V
- Output Current - Output 1: 12.5A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Fixed
- Product Range: XP PBM300 Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CE, CSA, cUL, EN, UL
- Approval Category: Medical
- Approvals / Standards: CSA 22.2 No. 60601, EN 60601, UL 60601
- Efficiency: 70%
- External Depth: 190.5mm
- External Length / Height: 44.45mm
- External Width: 114.3mm
- Height: 44.45mm
- Input Current: 2.3A
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Leakage Current: 165µA
- Length: 190.5mm
- No. of Outputs: 1 Output
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Output Current Max: 12.5A
- Output Current Min: 0.6A
- Output Power: 300W
- Power Rating: 300W
- Supply Voltage: 264V
