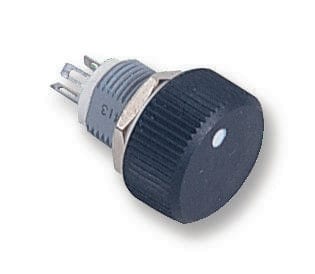

P16NP473KAB15 Potentiometer, 47K Vishay

VISHAYUGS :P16NP473KAB15 Code de commande:1357137

Prix:
Prix ​​promotionnel€21,74

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (39 unité)

Documenten en downloads

description

VISHAY - P16NP473KAB15 - Rotary Potentiometer, Cermet, 47 kohm, 1 Turns, Linear, 1 W, ± 10%, P16NP

  • Track Resistance: 47kohm
  • No. of Turns: 1Turns
  • Track Taper: Linear
  • Power Rating: 1W
  • Resistance Tolerance: ± 10%
  • Product Range: P16NP Series
  • Potentiometer Mounting: Panel
  • Shaft Diameter: -
  • No. of Gangs: 1
  • Adjustment Type: Rotary
  • Shaft Length: -
  • Body Diameter: 16mm
  • Electrical Angular Rotation Tolerance +: 10°
  • Electrical Angular Rotation Tolerance -: 10°
  • IP / NEMA Rating: IP67
  • Mechanical Angular Rotation Tolerance +: 5°
  • Mechanical Angular Rotation Tolerance -: 5°
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Resistor Element Material: Cermet
  • Rotation Electrical Angle: 270°
  • Rotation Mechanical Angle: 300°
  • Temperature Coefficient: ± 150ppm/°C
  • Voltage Rating: 350V
