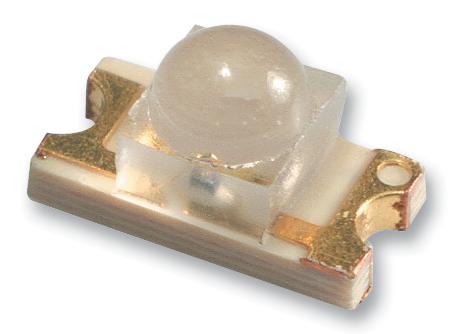

OIS 330 770 Infrared Emitter, 770 Nm, 1206 OSA Opto Light

OSA OPTO LIGHTUGS :OIS 330 770 Code de commande:1655531

Prix:
Prix ​​promotionnel€2,64

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1179 unité)

Documents et téléchargements

description

OSA OPTO LIGHT - OIS 330 770 - Infrared Emitter, High Intensity, 770 nm, 40 °, 1206, 7.1 mW/Sr, 40 ns, 40 ns

  • Peak Wavelength: 770nm
  • Angle of Half Intensity: 40°
  • Diode Case Style: 1206
  • Radiant Intensity (Ie): 7.1mW/Sr
  • Rise Time: 40ns
  • Fall Time tf: 40ns
  • Forward Current If(AV): 30mA
  • Forward Voltage VF Max: 1.7V
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • Product Range: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • LED / Lamp Size: 1206
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +85°C
  • Viewing Angle: 40°
  • Wavelength Typ: 770nm
