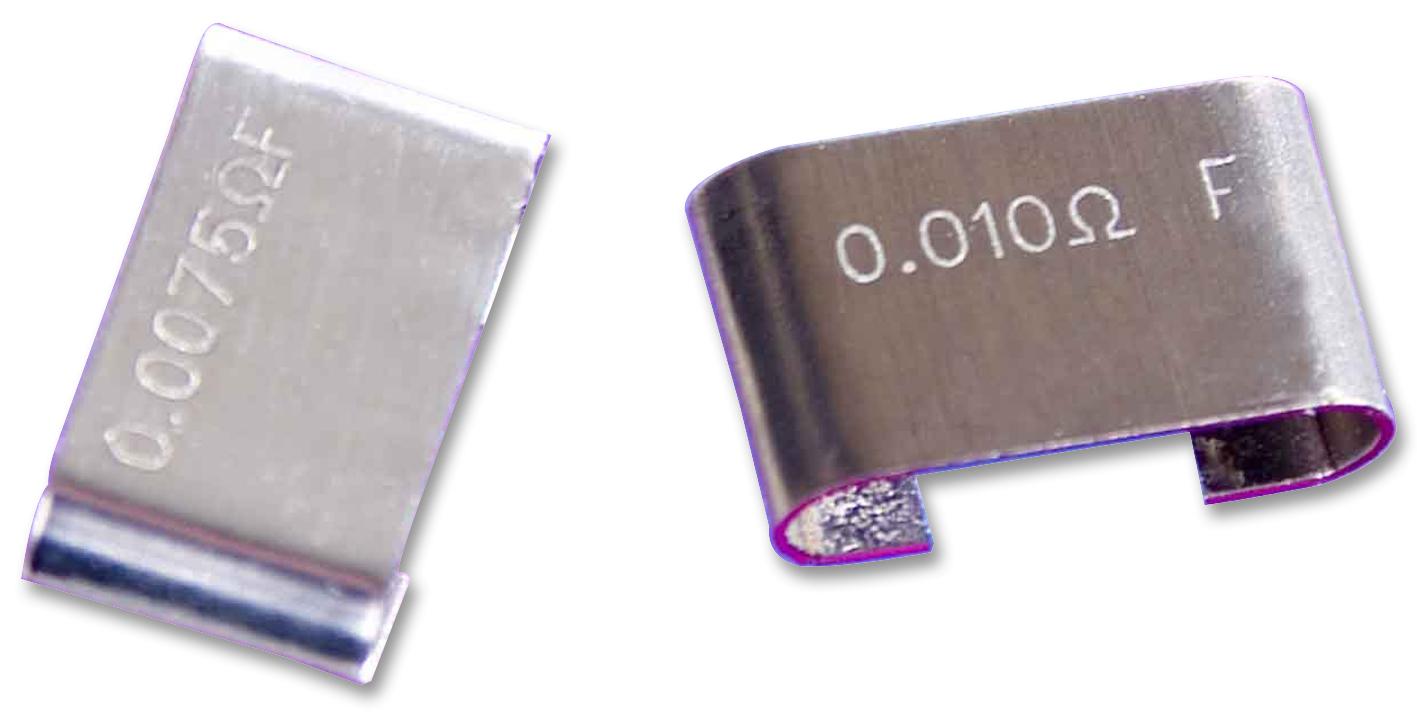

Oars-XP-0R01 Resistor, Open Air, 0R01 3.5W TT Electronics / WELWYN

TT ELECTRONICS / WELWYNUGS :OARS-XP-0R01 Code de commande:1292588

Prix:
Prix ​​promotionnel€10,21

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (819 unité)

Documents et téléchargements

description

TT ELECTRONICS / WELWYN - OARS-XP-0R01 - SMD Current Sense Resistor, 0.01 ohm, OARS, SMD, 3.5 W, ± 5%, Metal Strip

  • Resistance: 0.01ohm
  • Product Range: OARS Series
  • Resistor Case Style: SMD
  • Power Rating: 3.5W
  • Resistance Tolerance: ± 5%
  • Resistor Element Material: Metal Strip
  • Temperature Coefficient: ± 40ppm/°C
  • Automotive Qualification Standard: AEC-Q200
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 4.6mm
  • External Length / Height: 12mm
  • External Width: 6.3mm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Resistor Mounting: Surface Mount Device
  • Temperature Coeff. +: 40ppm/°C
  • Temperature Coeff. -: 40ppm/°C
  • Tolerance +: 5%
  • Tolerance -: 5%
