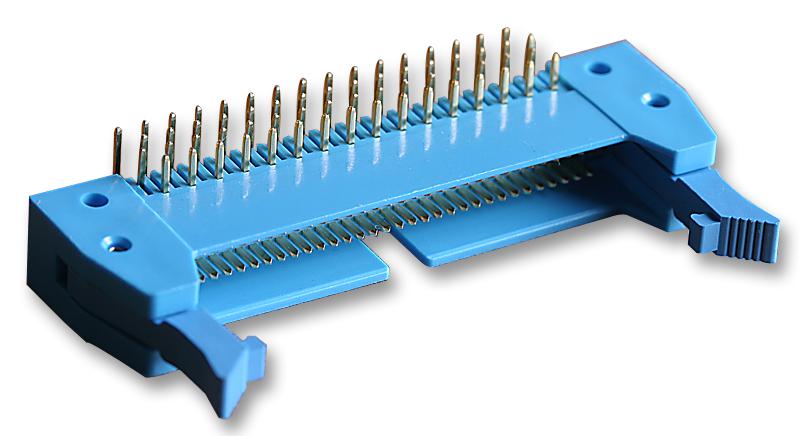

YAMAICHI - NFP-64A-0122BS - Pin Header, Right Angle, Wire-to-Board, 1.27 mm, 2 Rows, 64 Contacts, Through Hole, NF
- Pitch Spacing: 1.27mm
- No. of Contacts: 64Contacts
- Gender: Header
- Product Range: NF Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (12-Jan-2017)
- Colour: Blue
- Contact Resistance: 15mohm
- Current Rating: 1A
- External Depth: 23.7mm
- External Length / Height: 8.3mm
- External Width: 58.57mm
- Insulation Resistance: 1000Mohm
- Material: PBT
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Polarisation Type: Bump
- Voltage Rating VAC: 150V
