description

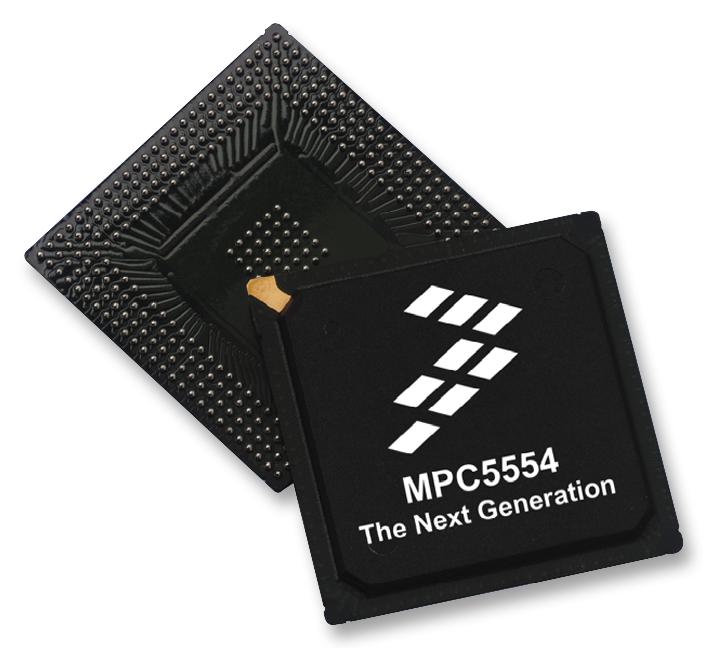

NXP - MPC5554MVR132 - Microcontroller, MPC5 Family MPC55xx Series Microcontrollers, Power Architecture, 32bit, 132 MHz
- Product Range: MPC5 Family MPC55xx Series Microcontrollers
- Architecture: Power Architecture
- No. of Bits: 32bit
- CPU Speed: 132MHz
- Program Memory Size: 2MB
- RAM Memory Size: 64KB
- No. of Pins: 416Pins
- MCU Case Style: BGA
- No. of I/O's: 256I/O's
- Embedded Interface Type: CAN, SCI, SPI
- Supply Voltage Min: 1.35V
- Supply Voltage Max: 1.65V
- MCU Family: MPC5
- MCU Series: MPC55xx
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q100
- Cache on Chip L1/L2 Memory: 32KB
- Clock Frequency: 132MHz
- Controller Family/Series: POWER 55xx
- MPU Core Size: 32bit
- Memory Type: Flash
- No. of PWM Channels: 24
- No. of Timers: 2
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Oscillator Type: External
- Peripherals: ADC, POR
- Program Memory Size: 2MB
- Supply Voltage Range: 1.35V to 1.65V
- Termination Type: Surface Mount Device
