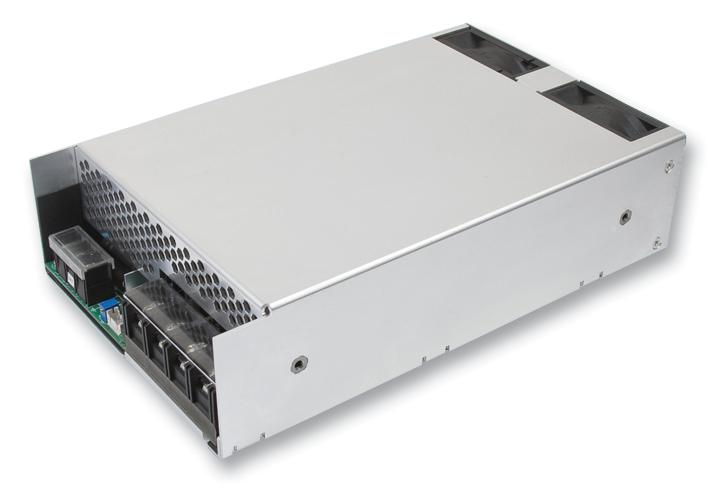

XP POWER - MHP1000PS12 - AC/DC Enclosed Power Supply (PSU), Medical, 1 Outputs, 1 kW, 12 V, 83 A
- No. of Outputs: 1Outputs
- Output Power Max: 1kW
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 83A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 80V AC to 264V AC
- Power Supply Output Type: Fixed
- Product Range: MHP1000 Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: IEC, TUV, UL
- Approvals / Standards: CSA 22.2 No. 60601, EN 60601, IEC 60601, UL 60601
- Height: 61mm
- Input Frequency: 63Hz
- Input Voltage: 85V AC to 264V AC
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Length: 242.64mm
- No. of Outputs: 1 Output
- Output Current Max: 83A
- Power Rating: 1kW
- Width: 149.8mm
