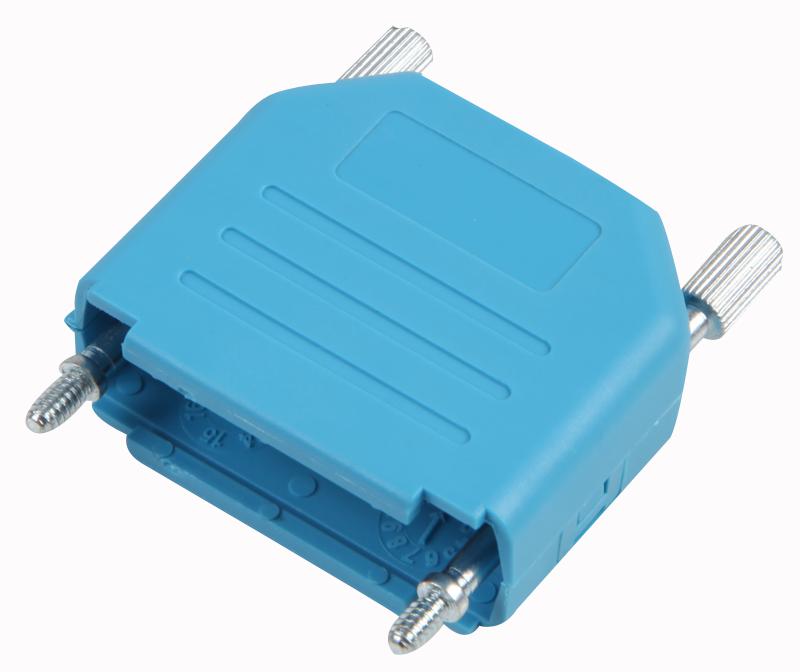

MH CONNECTORS - MHDPPK15-B-K - D Sub Backshell, Blue, MHDPPK, DA, 180°, Nylon (Polyamide) Body
- Product Range: MHDPPK Series
- D Sub Shell Size: DA
- Cable Exit Angle: 180°
- Connector Body Material: Nylon (Polyamide) Body
- SVHC: No SVHC (27-Jun-2018)
- Cable Diameter Max: 8mm
- Colour: Blue
- External Depth: 34mm
- External Length / Height: 15mm
- External Width: 40mm
- Flammability Rating: UL94-HB
- Insulator Material: Nylon (Polyamide)
- Material: Nylon
- Operating Temperature Max: 110°C
- Operating Temperature Min: -55°C
- Screw Material: Steel
- Screw Plating: Nickel
