description

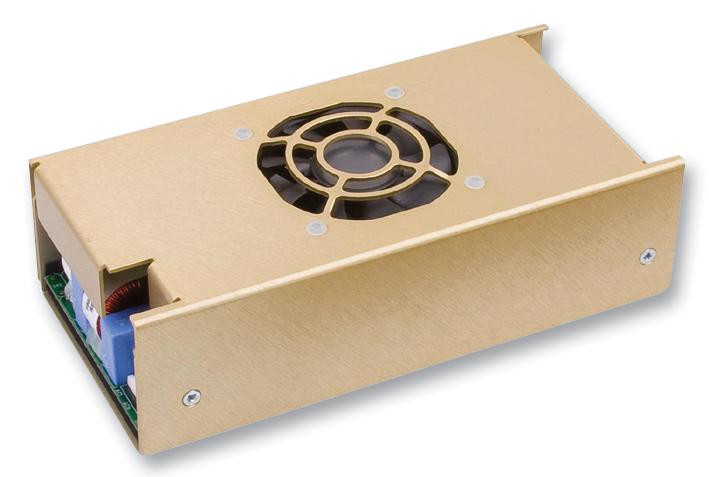

XP POWER - MFA350PS12-STF - AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 361 W, 12 V, 29 A, 12 V
- No. of Outputs: 1Outputs
- Output Power Max: 361W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 29A
- Output Voltage - Output 2: 12V
- Output Current - Output 2: 1A
- Output Voltage - Output 3: 5V
- Output Current - Output 3: 300mA
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Product Range: XP MFA350 Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- External Depth: 84.5mm
- External Length / Height: 50.79mm
- External Width: 172.72mm
- Height: 50.79mm
- Input Frequency: 63Hz
- Input Voltage: 85V AC to 264V AC
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Length: 84.5mm
- No. of Outputs: 1 Output
- Operating Temperature Max: 70°C
- Operating Temperature Min: -10°C
- Output Current Max: 29A
- Power Rating: 350W
- Supply Frequency Max: 63Hz
- Supply Frequency Min: 47Hz
- Supply Voltage Max: 264V
- Supply Voltage Min: 85V
- Supply Voltage Typ: 110V AC, 230V AC
- Width: 172.72mm
