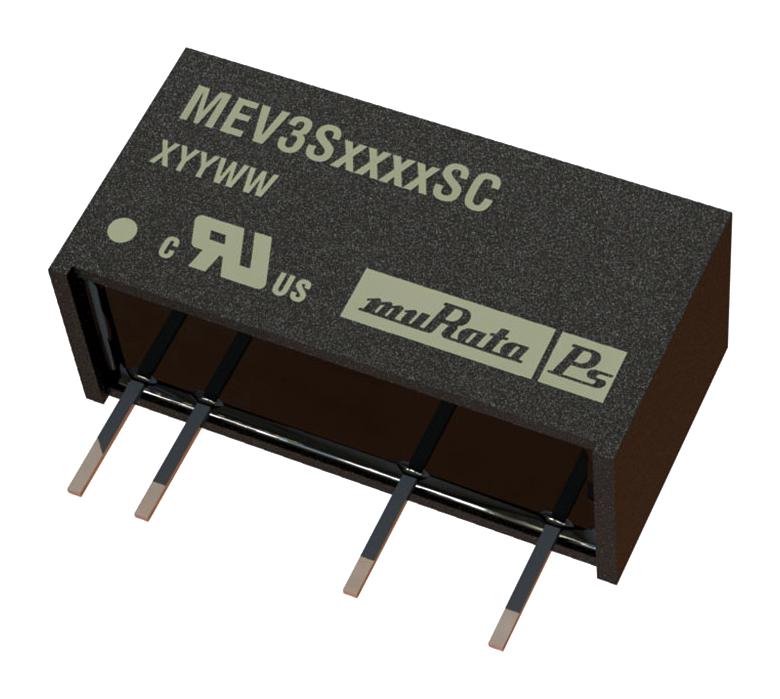

MEV3S0512SC Converter, DC/DC, 3W, 5 TO 12V, 3kV Murata Power Solutions

MURATA POWER SOLUTIONSUGS :MEV3S0512SC Code de commande:1818377

Prix:
Prix ​​promotionnel€15,86

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 2 produits disponibles

Documents et téléchargements

description

MURATA POWER SOLUTIONS - MEV3S0512SC - Isolated Through Hole DC/DC Converter, 3kV Isolation, ITE, 1:1, 3 W, 1 Output, 12 V, 250 mA

  • No. of Outputs: 1 Output
  • Output Power Max: 3W
  • Output Voltage - Output 1: 12V
  • Output Current - Output 1: 250mA
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: MEV3 Series
  • Input Voltage DC Min: 4.5V
  • Input Voltage DC Max: 5.5V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: SIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 7.65mm
  • Height: 10.15mm
  • Depth: 19.65mm
  • SVHC: No SVHC (07-Jul-2017)
  • Approval Bodies: UL
  • Approvals & Standards: UL
  • Efficiency: 81.5%
  • Isolation Voltage: 3kV
  • No. of Outputs: 1Outputs
  • Power Rating: 3W
  • Supply Voltage: 5V
