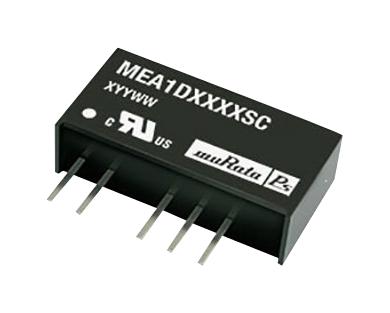

MURATA POWER SOLUTIONS - MEA1D1509SC - Isolated Through Hole DC/DC Converter, 1kV Isolation, ITE, 1:1, 1 W, 2 Output, 9 V, 56 mA
- No. of Outputs: 2 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 9V
- Output Current - Output 1: 56mA
- Output Voltage - Output 2: -9V
- Output Current - Output 2: 56mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: MEA1 Series
- Input Voltage DC Min: 13.5V
- Input Voltage DC Max: 16.5V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 6.15mm
- Height: 10.15mm
- Depth: 19.65mm
- SVHC: No SVHC (07-Jul-2017)
- Approval Bodies: UL
- Approvals & Standards: UL
- Efficiency: 87%
- Isolation Voltage: 1kV
- No. of Outputs: 2Outputs
- Power Rating: 1W
- Supply Voltage: 15V
