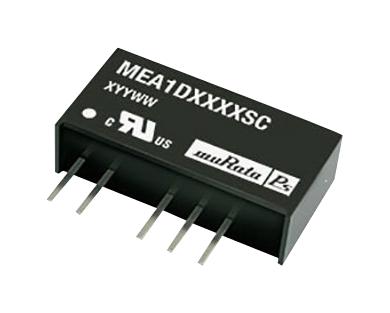

MEA1D0515SC Converter, DC/DC, Sil, 1W, 15V Murata Power Solutions

MURATA POWER SOLUTIONSUGS :MEA1D0515SC Code de commande:1671259

Prix:
Prix ​​promotionnel€7,55

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (72 unité)

Documents et téléchargements

description

MURATA POWER SOLUTIONS - MEA1D0515SC - Isolated Through Hole DC/DC Converter, ITE, 1:1, 1 W, 2 Output, 15 V, 33 mA

  • No. of Outputs: 2 Output
  • Output Power Max: 1W
  • Output Voltage - Output 1: 15V
  • Output Current - Output 1: 33mA
  • Output Voltage - Output 2: -15V
  • Output Current - Output 2: 33mA
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: MEA Series
  • Input Voltage DC Min: 4.5V
  • Input Voltage DC Max: 5.5V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: SIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 6.15mm
  • Height: 10.15mm
  • Depth: 19.65mm
  • SVHC: No SVHC (07-Jul-2017)
  • Approval Bodies: UL
  • Approvals & Standards: UL
  • Efficiency: 87%
  • Isolation Voltage: 1kV
  • No. of Outputs: 2Outputs
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Output Ripple Voltage pk-pk: 8mV
  • Power Rating: 1W
  • Supply Voltage: 5V
