MCL034GD LED, 3mm, 70°, Green multicomp Pro

MULTICOMP PROUGS :MCL034GD Code de commande:1581114

Prix:
Prix ​​promotionnel€0,18

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (63490 unité)

Documents et téléchargements

description

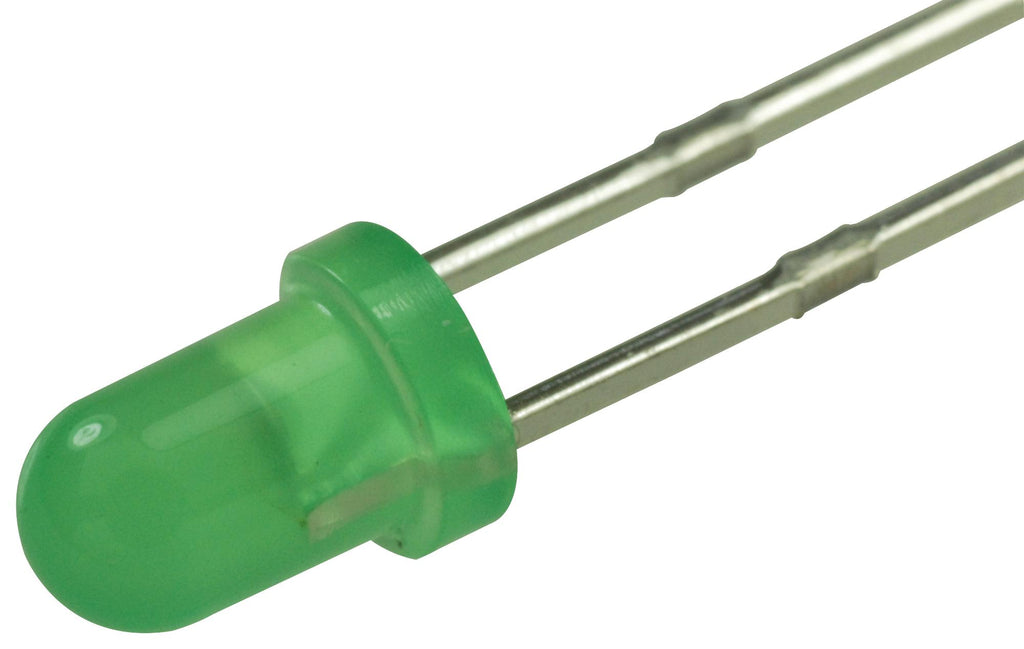

MULTICOMP PRO - MCL034GD - LED, Green, Through Hole, T-1 (3mm), 20 mA, 2.1 V, 570 nm

  • LED Colour: Green
  • LED Mounting: Through Hole
  • LED Case Size: T-1 (3mm)
  • Forward Current If: 20mA
  • Forward Voltage: 2.1V
  • Wavelength Typ: 570nm
  • Luminous Intensity: 6mcd
  • Viewing Angle: 76°
  • Lens Shape: Round
  • Product Range: 3mm Green LED
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Bulb Size: T-1 (3mm)
  • Current Rating: 20mA
  • Dominant Wavelength: 570nm
  • Dominant Wavelength Typ: 570nm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.6V
  • LED / Lamp Size: 3mm / T-1
  • LED Type: Standard
  • Luminous Intensity Max: 10mcd
  • Luminous Intensity Min: 3mcd
  • Luminous Intensity Typ: 6mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Peak Forward Current: 100mA
  • Peak Wavelength: 568nm
  • Reverse Protection Voltage: 5V
  • Storage Temperature Max: +85°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Min: 1.7V
  • Voltage Vf Typ: 2.1V
