description

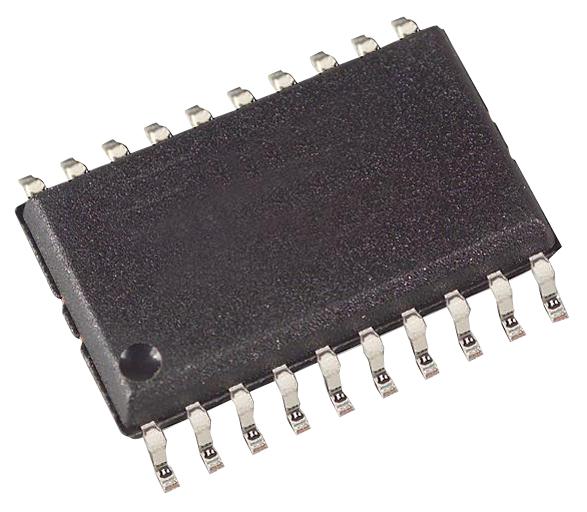

NXP - MC9S08JS16CWJ - MCU-Application Specific 8 bit, HCS08, 24 MHz, 512 Byte RAM/16 KB Program, 2.7V-5.5Vin, SOIC-20
- Product Range: S08 Family S08JS Series Microcontrollers
- Architecture: S08
- MCU Core Size: 8bit
- Program Memory Size: 16KB
- RAM Memory Size: 512Byte
- CPU Speed: 24MHz
- No. of I/O's: 14I/O's
- MCU Case Style: SOIC
- No. of Pins: 20Pins
- Embedded Interface Type: SCI, SPI, USB
- MCU Applications: USB Microcontroller
- Supply Voltage Min: 2.7V
- Supply Voltage Max: 5.5V
- MCU Family: S08
- MCU Series: S08JS
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Clock Frequency: 48MHz
- Controller Family/Series: HCS08
- Flash Memory Size: 16KB
- MPU Core Size: 8bit
- No. of PWM Channels: 2
- No. of Timers: 1
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: CRC, PWM, RTC, Timer
- Program Memory Size: 16KB
- Supply Voltage Range: 2.7V to 5.5V
- Termination Type: Surface Mount Device
