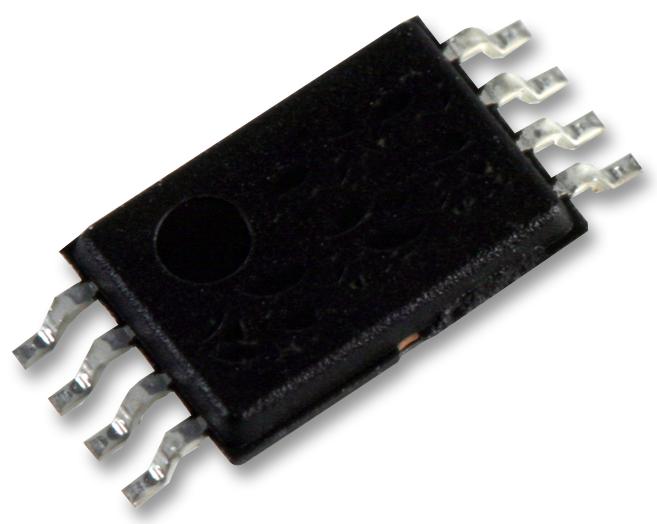

ONSEMI - MC100EPT25DTG - ECL-to-LVTTL Translator, 2 Input, 24 mA, 950 ps, 3 V to 3.6 V, TSSOP-8
- No. of Inputs: 2
- Output Current: 24mA
- Propagation Delay: 950ps
- No. of Pins: 8Pins
- Logic Case Style: TSSOP
- Supply Voltage Min: 3V
- Supply Voltage Max: 3.6V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Logic Type: Level Translator
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 100EPT25
- Fall Time tf: 1100ps
- IC Generic Number: 100EPT25
- Logic Function Number: 25
- Logic IC Base Number: 10025
- Logic IC Function: Differential Ecl-To-+LvTTL Translator
- No. of Channels: 1Channels
- No. of Gates: 1
- Operating Temperature Range: -40°C to +85°C
- Rise Time: 459ps
- Supply Current: 16mA
- Supply Voltage: 5.5V
- Supply Voltage Range: 3V to 3.6V
- Termination Type: Surface Mount Device
- Translator Type: Differential ECL-to-+3.3V LVTTL
