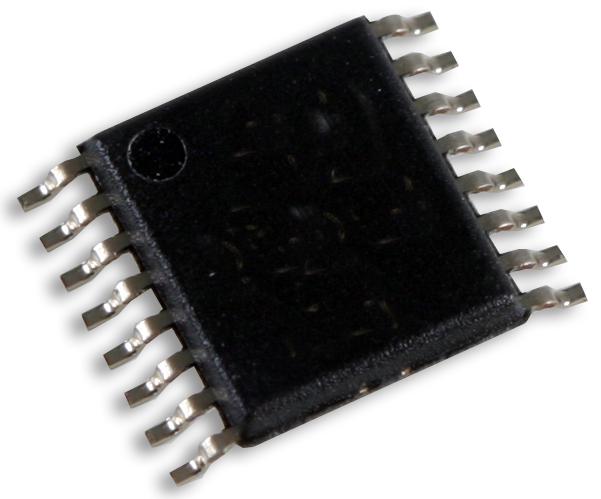

MAXIM INTEGRATED / ANALOG DEVICES - MAX6951EEE+ - LED Driver, Serially Interfaced, 9 Outputs, 2.7 V to 5.5 V Input, 8 MHz, 2.4 V/320 mA Out, QSOP-16
- Device Topology: -
- Input Voltage Min: 2.7V
- Input Voltage Max: 5.5V
- Output Voltage Max: -
- Output Current Max: 320mA
- Switching Frequency: 8MHz
- No. of Outputs: 9Outputs
- IC Mounting: SMD
- Driver Case Style: QSOP
- No. of Pins: 16Pins
- Operating Temperature Min: 40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Base Number: 6951
- Data / Control Interface: I2C, MicroWire / SPI, Serial
- Dimming Control Type: PWM
- Input Voltage: 2.7V to 5.5V
- LED Display Type: 7 Segment & Discrete LED
- LED Driver Application: Display, Panel Meters
- No. Segments: 7
- Operating Temperature Range: -40°C to +85°C
- Output Current: 320mA
- Output Voltage: 2.4V
- Termination Type: Surface Mount Device
- Topology: Common Cathode
