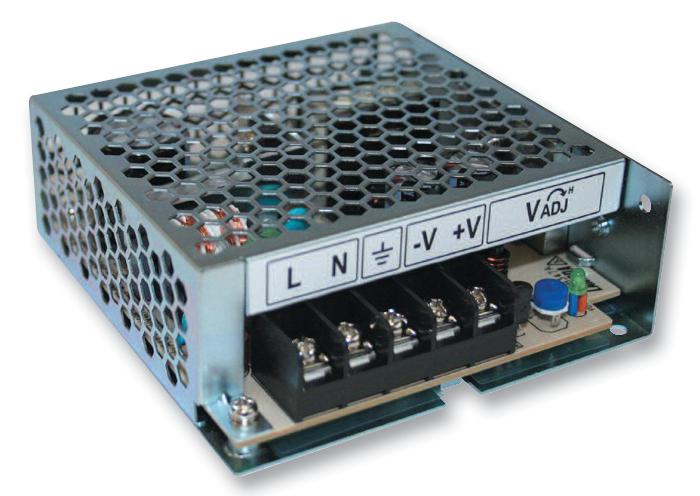

LS50-15 PSU, Enclosed, 15V, 3.4A, 50W TDK-Lambda

TDK-LAMBDAUGS :LS50-15 Code de commande:1657438

Prix:
Prix ​​promotionnel€34,58

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (13 unité)

Documents et téléchargements

description

TDK-LAMBDA - LS50-15 - AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 51 W, 15 V, 3.4 A

  • No. of Outputs: 1Outputs
  • Output Power Max: 51W
  • Output Voltage - Output 1: 15V
  • Output Current - Output 1: 3.4A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Input Voltage VAC: 88V AC to 264V AC
  • Power Supply Output Type: Adjustable, Fixed
  • Product Range: LS Series
  • SVHC: No SVHC (15-Jan-2018)
  • Applications: General Purpose
  • Approval Bodies: CE, EN, FCC-B, IEC, UL
  • Efficiency: 85%
  • External Depth: 97mm
  • External Length / Height: 36mm
  • External Width: 99mm
  • Frequency Max: 63Hz
  • Frequency Min: 47Hz
  • Height: 36mm
  • Hold Up Time: 60ms
  • Input Current: 0.8A
  • Input Voltage: 88V AC to 264V AC
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 88V
  • Inrush Current: 40A
  • Length: 97mm
  • No. of Outputs: 1 Output
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Output Current Max: 3.4A
  • Output Ripple Voltage pk-pk: 120mV
  • Output Voltage Max: 16.5V
  • Output Voltage Min: 13.5V
