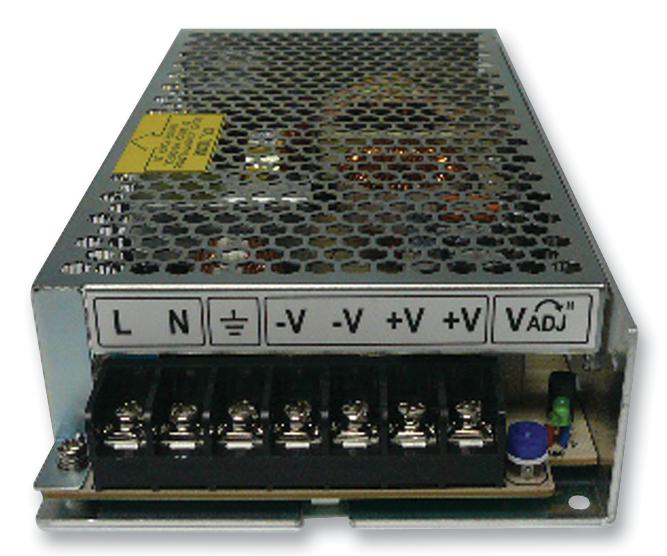

LS150-5 PSU, Enclosed, 5V, 26A, 150W TDK-Lambda

TDK-LAMBDAUGS :LS150-5 Code de commande:1657459

Prix:
Prix ​​promotionnel€64,04

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (7 unité)

Documents et téléchargements

description

TDK-LAMBDA - LS150-5 - AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 130 W, 5 V, 26 A

  • No. of Outputs: 1Outputs
  • Output Power Max: 130W
  • Output Voltage - Output 1: 5V
  • Output Current - Output 1: 26A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Input Voltage VAC: 88V AC to 264V AC
  • Power Supply Output Type: Adjustable, Fixed
  • Product Range: LS Series
  • SVHC: No SVHC (15-Jan-2018)
  • Applications: General Purpose
  • Approval Bodies: CE, EN, FCC-B, IEC, UL
  • Efficiency: 79%
  • External Depth: 98mm
  • External Length / Height: 38mm
  • External Width: 157mm
  • Frequency Max: 63Hz
  • Frequency Min: 47Hz
  • Height: 38mm
  • Hold Up Time: 28ms
  • Input Current: 2A
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 88V
  • Inrush Current: 40A
  • Length: 98mm
  • No. of Outputs: 1 Output
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Output Current Max: 26A
  • Output Ripple Voltage pk-pk: 80mV
  • Output Voltage Max: 5.5V
  • Output Voltage Min: 4.75V
  • Power Rating: 130W
  • Supply Voltage: 264V
