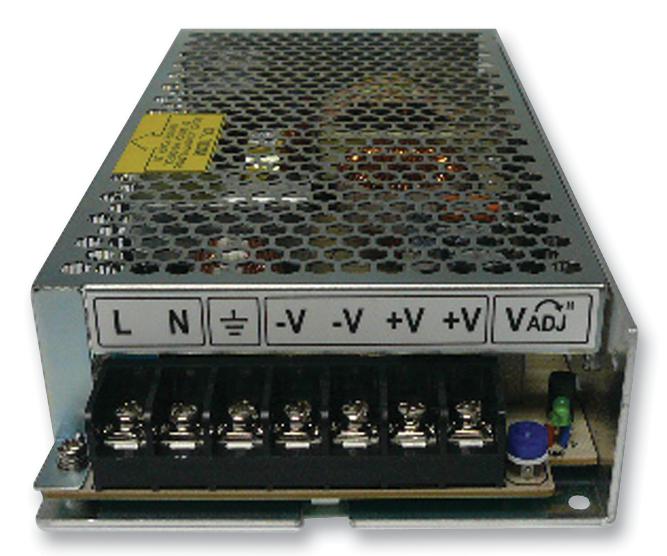

TDK-LAMBDA - LS150-15 - AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 150 W, 15 V, 10 A
- No. of Outputs: 1Outputs
- Output Power Max: 150W
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 10A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 88V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Product Range: LS Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- Approval Bodies: CE, EN, FCC-B, IEC, UL
- Efficiency: 85%
- External Depth: 98mm
- External Length / Height: 38mm
- External Width: 157mm
- Frequency Max: 63Hz
- Frequency Min: 47Hz
- Height: 38mm
- Hold Up Time: 28ms
- Input Current: 2A
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 88V
- Inrush Current: 40A
- Length: 98mm
- No. of Outputs: 1 Output
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Output Current Max: 10A
- Output Ripple Voltage pk-pk: 120mV
- Output Voltage Max: 16.5V
- Output Voltage Min: 13.5V
- Power Rating: 150W
- Weight: 700g
