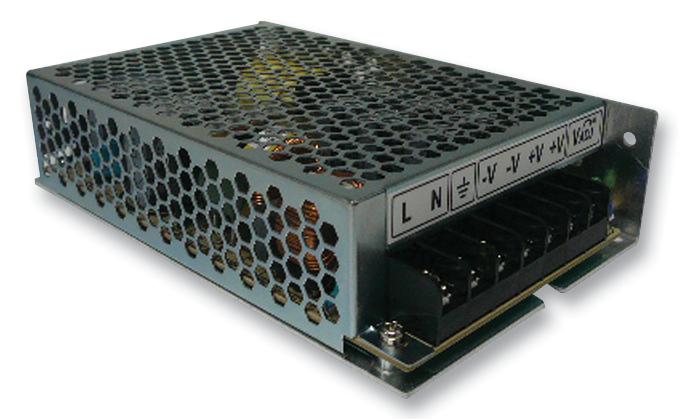

TDK-LAMBDA - LS100-48 - AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 110.4 W, 48 V, 2.3 A
- No. of Outputs: 1Outputs
- Output Power Max: 110.4W
- Output Voltage - Output 1: 48V
- Output Current - Output 1: 2.3A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 88V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Product Range: LS Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- Approval Bodies: CE, EN, FCC-B, IEC, UL
- Efficiency: 86%
- External Depth: 97mm
- External Length / Height: 38mm
- External Width: 159mm
- Frequency Max: 63Hz
- Frequency Min: 47Hz
- Height: 38mm
- Hold Up Time: 150ms
- Input Current: 1.2A
- Input Voltage: 88V AC to 264V AC
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 88V
- Inrush Current: 60A
- Length: 97mm
- No. of Outputs: 1 Output
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Output Current Max: 2.3A
- Output Ripple Voltage pk-pk: 200mV
- Output Voltage Max: 54V
- Output Voltage Min: 42V
