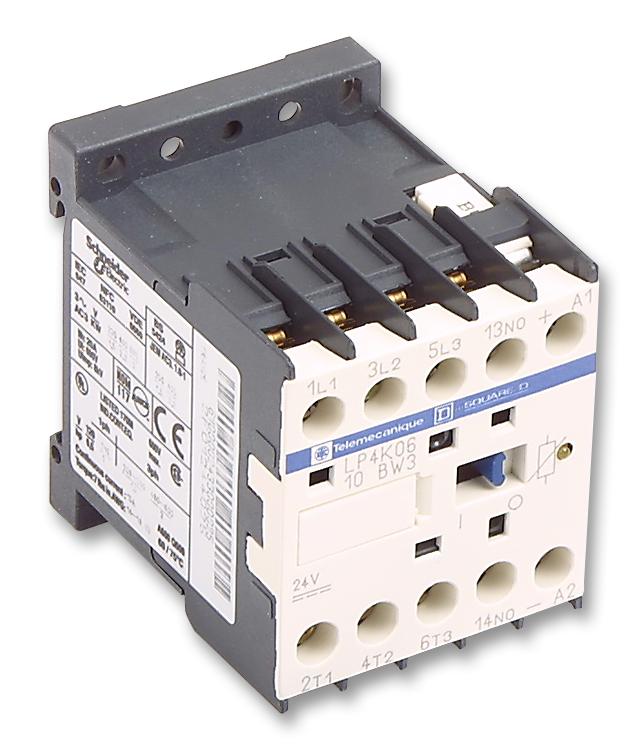

LP4K0610BW3 Contactor, 2.2kW, 24Vdc Schneider Electric

SCHNEIDER ELECTRICUGS :LP4K0610BW3 Code de commande:288366

Prix:
Prix ​​promotionnel€74,35

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (13 unité)

Documents et téléchargements

description

SCHNEIDER ELECTRIC - LP4K0610BW3 - Contactor, 6 A, DIN Rail, 24 VDC, 3NO / 1NO, 3 Pole, 2.2 kW

  • Load Current Inductive: 6A
  • Relay Mounting: DIN Rail
  • Operating Voltage: 24VDC
  • Contact Configuration: 3NO / 1NO
  • No. of Poles: 3 Pole
  • Switching Power AC3: 2.2kW
  • Switching Current AC1: -
  • Coil Voltage VAC Nom: -
  • Coil Voltage VDC Nom: 24V
  • Switching Power AC1: -
  • Load Current Resistive: -
  • Switching Current AC3: 6A
  • Product Range: TeSys K Series
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: BV, CSA, DEMKO, GL, LLOYDS, NEMKO, RINA, SEV, UL, USSR
  • Aux Contact Current Max: 6A
  • Aux Contact Voltage AC Max: 660V
  • Coil Holding Power: 4.5VA
  • Coil Operating Lower Percent Limit: 70%
  • Coil Operating Upper Percent Limit: 130%
  • Coil Pull-in Power: 30VA
  • Coil Type: DC
  • Contact Current DC Max: 6A
  • Contact Current Max: 15A
  • Contact Voltage AC Max: 690V
  • Contact Voltage AC Nom: 600V
  • Contact Voltage DC Max: 24V
  • DC Coil Power: 1.5W
  • External Depth: 57mm
  • External Length / Height: 58mm
  • External Width: 45mm
  • Main Contact Current AC1 Max: 20A
  • Main Contact Current AC3 Max: 6A
  • Operating Temperature Max: 50°C
