LFXTAL003336 Crystal, 7.372800MHZ IQD Frequency Products

IQD FREQUENCY PRODUCTSUGS :LFXTAL003336 Code de commande:9713719

Prix:
Prix ​​promotionnel€1,06

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1239 unité)

Documents et téléchargements

description

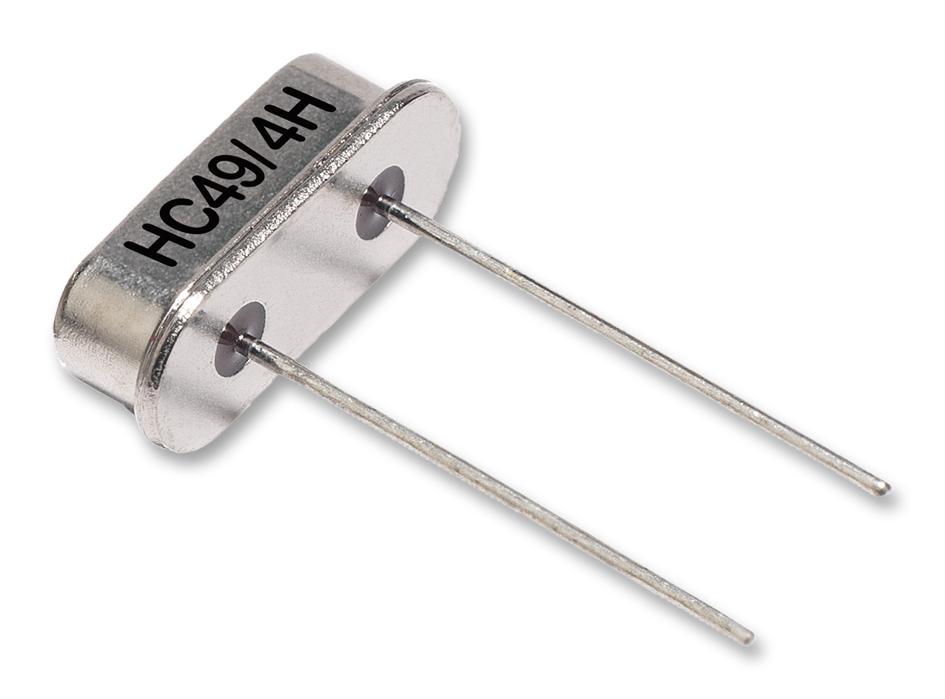

IQD FREQUENCY PRODUCTS - LFXTAL003336 - Crystal, 7.3728 MHz, Through Hole, 11mm x 4.7mm, 30 ppm, 18 pF, 15 ppm, HC-49/4H

  • Frequency Nom: 7.3728MHz
  • Crystal Case: Through Hole, 11mm x 4.7mm
  • Frequency Stability + / -: 30ppm
  • Load Capacitance: 18pF
  • Frequency Tolerance + / -: 15ppm
  • Product Range: HC-49/4H Series
  • Operating Temperature Min: -10°C
  • Operating Temperature Max: 60°C
  • SVHC: No SVHC (15-Jan-2018)
  • Accuracy: ± 30ppm
  • Crystal Mounting Type: Through Hole
  • Frequency: 7.3728MHz
  • Frequency Accuracy + @: 15ppm
  • Frequency Accuracy - @: 15ppm
  • Frequency Stability: ± 30ppm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -10°C to +60°C
  • Output Frequency: 7.3728MHz
  • Temperature Stability + @: 30ppm
  • Temperature Stability - @: 30ppm
  • Temperature Stabilty: ± 30ppm
