LFXTAL003058 Crystal, SMD, 3.579545MHZ IQD Frequency Products

IQD FREQUENCY PRODUCTSUGS :LFXTAL003058 Code de commande:9713816

Prix:
Prix ​​promotionnel€0,78

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2306 unité)

Documents et téléchargements

description

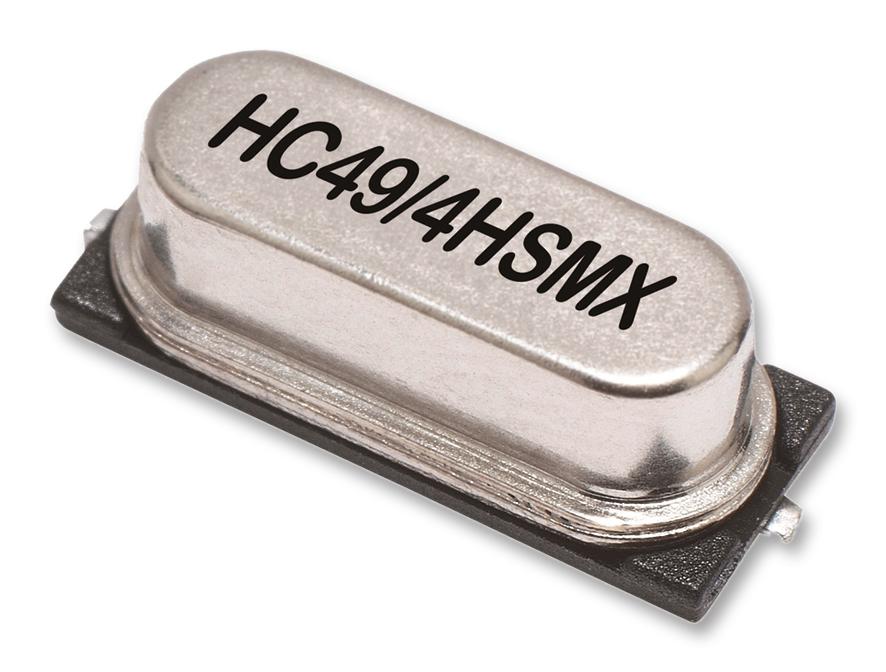

IQD FREQUENCY PRODUCTS - LFXTAL003058 - Crystal, 3.579545 MHz, SMD, 11.4mm x 4.9mm, 50 ppm, 16 pF, 30 ppm, HC-49/4HSMX

  • Frequency Nom: 3.579545MHz
  • Crystal Case: SMD, 11.4mm x 4.9mm
  • Frequency Stability + / -: 50ppm
  • Load Capacitance: 16pF
  • Frequency Tolerance + / -: 30ppm
  • Product Range: HC-49/4HSMX Series
  • Operating Temperature Min: -10°C
  • Operating Temperature Max: 60°C
  • SVHC: No SVHC (15-Jan-2018)
  • Accuracy: ± 30ppm
  • Crystal Mounting Type: SMD
  • Frequency: 3.579545MHz
  • Frequency Accuracy + @: 30ppm
  • Frequency Accuracy - @: 30ppm
  • Frequency Stability: ± 50ppm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -10°C to +60°C
  • Output Frequency: 3.579545MHz
  • Temperature Stability + @: 50ppm
  • Temperature Stability - @: 100ppm
  • Temperature Stabilty: -100ppm to +50ppm
