LFSPXO020465 Crystal Oscillator, SMD, 12.288MHZ IQD Frequency Products

IQD FREQUENCY PRODUCTSUGS :LFSPXO020465 Code de commande:9713492

Prix:
Prix ​​promotionnel€3,22

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3479 unité)

Documents et téléchargements

description

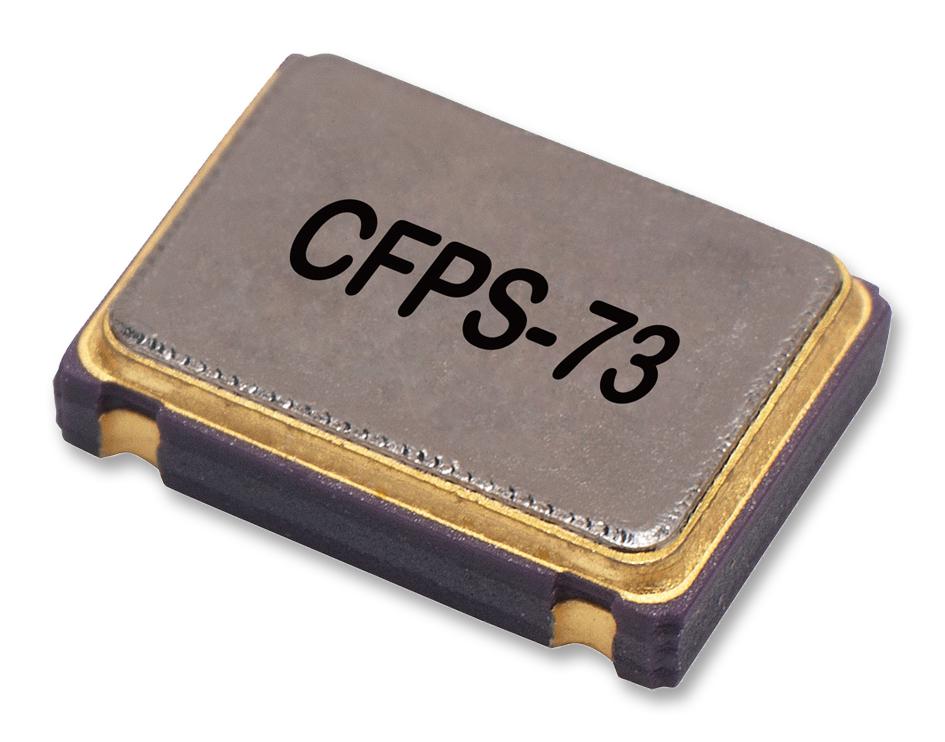

IQD FREQUENCY PRODUCTS - LFSPXO020465 - Oscillator, Crystal, 12.288 MHz, 50 ppm, SMD, 7mm x 5mm, 3.3 V, CFPS-73 Series

  • Frequency Nom: 12.288MHz
  • Frequency Stability + / -: 50ppm
  • Oscillator Case: SMD, 7mm x 5mm
  • Supply Voltage Nom: 3.3V
  • Product Range: CFPS-73 Series
  • Operating Temperature Min: 0°C
  • Operating Temperature Max: 70°C
  • Oscillator Output Compatibility: HCMOS
  • SVHC: No SVHC (15-Jan-2018)
  • Accuracy: ± 50ppm
  • Crystal Case: CFPS-73
  • Duty Cycle (%): 55%
  • Duty Cycle Lower Limit: 45%
  • Duty Cycle Upper Limit: 55%
  • Fall Time tf: 6ns
  • Frequency: 12.288MHz
  • Frequency Accuracy + @: 50ppm
  • Frequency Accuracy - @: 50ppm
  • Frequency Stability: ± 50ppm
  • Load Capacitance: 15pF
  • No. of Pins: 4Pins
  • Operating Temperature Range: 0°C to +70°C
  • Output Drive Level: HCMOS
  • Output Frequency: 12.288MHz
  • Resonator Case: SMD
  • Rise Time: 6ns
  • Supply Current Max: 15mA
  • Supply Voltage Max: 3.6V
  • Supply Voltage Min: 3V
  • Temperature Stability + @: 50ppm
  • Temperature Stability - @: 50ppm
  • Temperature Stabilty: ± 50ppm
  • Type: SPXO
