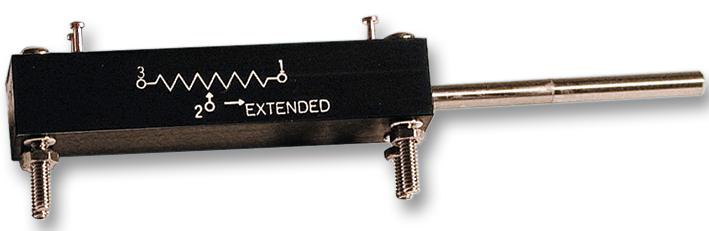

ETI SYSTEMS - LCP12S-25-1K - Linear Motion Potentiometer, 1 kohm, ± 20%, 400 mW, LCP12, Turret
- Track Resistance: 1kohm
- Power Rating: 400mW
- Resistance Tolerance: ± 20%
- Product Range: LCP12 Series
- Track Taper: Linear
- Temperature Coefficient: ± 400ppm/°C
- SVHC: No SVHC (07-Jul-2017)
- Adjustment Type: Slide
- Linearity, +: 1%
- Operating Temperature Max: 105°C
- Operating Temperature Min: -30°C
- Operating Temperature Range: -30°C to +105°C
- Resistor Element Material: Conductive Plastic
- Temperature Coeff. +: 400ppm/°C
- Temperature Coeff. -: 400ppm/°C
- Tolerance +: 20%
- Tolerance -: 20%
