L07R5000Q1 LED, 5mm, Bright, Red LED Technology

LED TECHNOLOGYUGS :L07R5000Q1 Code de commande:1208855

Prix:
Prix ​​promotionnel€1,10

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (990 unité)

Documents et téléchargements

description

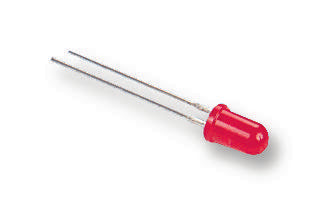

LED TECHNOLOGY - L07R5000Q1 - LED, Red, Through Hole, T-1 3/4 (5mm), 25 mA, 1.7 V, 660 nm

  • LED Colour: Red
  • LED Mounting: Through Hole
  • LED Case Size: T-1 3/4 (5mm)
  • Forward Current If: 25mA
  • Forward Voltage: 1.7V
  • Wavelength Typ: 660nm
  • Luminous Intensity: 32mcd
  • Viewing Angle: 68°
  • Lens Shape: Round
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jun-2015)
  • Bulb Size: T-1 3/4 (5mm)
  • Current If Luminous Intensity: 10mA
  • Dominant Wavelength: 655nm
  • External Diameter: 5mm
  • External Length / Height: 8.7mm
  • Forward Current If Max: 25mA
  • Forward Voltage VF Max: 1.7V
  • LED / Lamp Size: 5mm / T-1 3/4
  • LED Type: Superbright
  • Lead Cross-section Depth: 0.64mm
  • Lead Cross-section Width: 0.64mm
  • Lead Length: 17.8mm
  • Lead Spacing: 2.54mm
  • Luminous Intensity Typ: 32mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +85°C
  • PIV Max: 3V
  • Peak Forward Current: 25mA
  • Peak Wavelength: 660nm
  • Voltage Vf Typ: 1.7V
