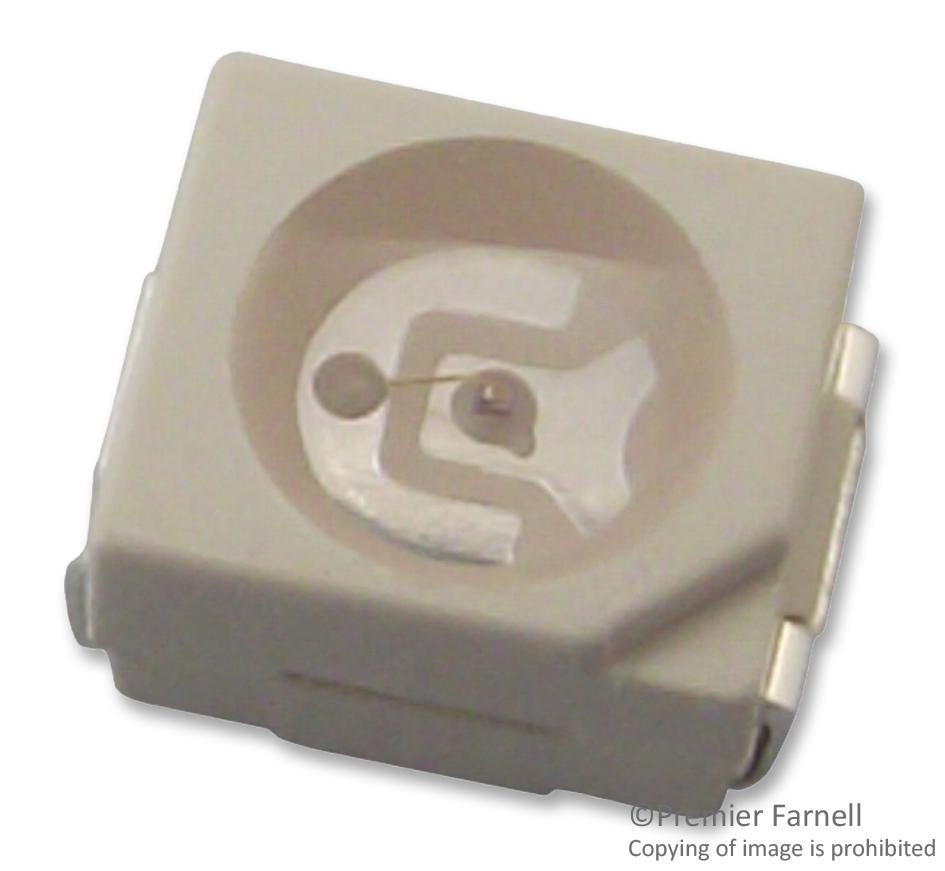

KINGBRIGHT - KA-3528SURC - LED, Red, SMD, 3.5mm x 2.8mm, 20 mA, 1.9 V, 640 nm
- LED Colour: Red
- LED Mounting: SMD
- LED Case Size: 3.5mm x 2.8mm
- Forward Current If: 20mA
- Forward Voltage: 1.9V
- Wavelength Typ: 640nm
- Luminous Intensity: 250mcd
- Viewing Angle: 120°
- Lens Shape: Round
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Bulb Size: 2.4mm
- Dominant Wavelength: 628nm
- External Depth: 2.8mm
- External Length / Height: 1.9mm
- External Width: 3.5mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.5V
- LED / Lamp Size: 2.4mm
- LED Type: Standard
- Lens Colour: Water clear
- Luminous Intensity @ If Min: 80mcd
- Luminous Intensity Typ: 250mcd
- Material: InGaAIP
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- PIV Max: 5V
- Peak Wavelength: 640nm
- Reverse Leakage Current Max: 10µA
- Storage Temperature Max: 85°C
- Storage Temperature Min: -40°C
- Voltage Vf Typ: 1.9V
