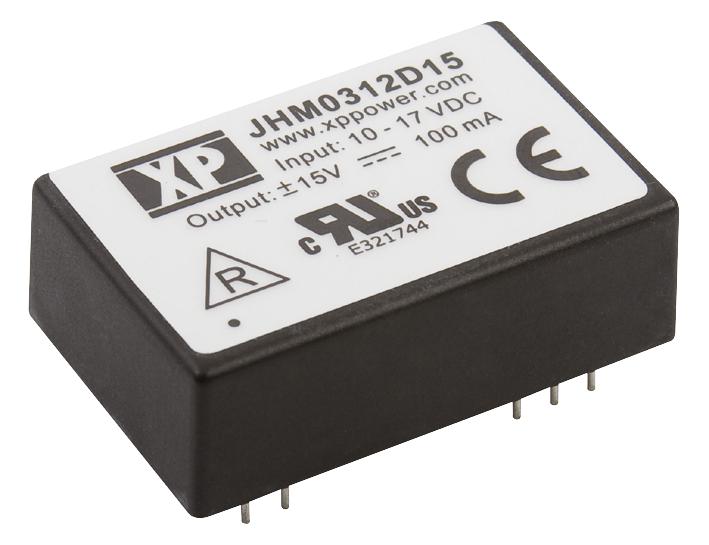

JHM0312D15 DC-DC Converter, Medical, 2 O/P, 3W XP Power

XP POWERUGS :JHM0312D15 Code de commande:1673364

Prix:
Prix ​​promotionnel€48,73

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (16 unité)

Documents et téléchargements

description

XP POWER - JHM0312D15 - Isolated Through Hole DC/DC Converter, Medical, 2:1, 3 W, 2 Output, 15 V, 100 mA

  • No. of Outputs: 2 Output
  • Output Power Max: 3W
  • Output Voltage - Output 1: 15V
  • Output Current - Output 1: 100mA
  • Output Voltage - Output 2: -15V
  • Output Current - Output 2: 100mA
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: -
  • Input Voltage DC Min: 10V
  • Input Voltage DC Max: 17V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: DIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 20.32mm
  • Height: 10.4mm
  • Depth: 31.75mm
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CSA 22.2 No. 60601, IEC 60601, UL 60601
  • Approvals & Standards: CSA 22.2 No. 60601, IEC 60601, UL 60601
  • External Depth: 20.32mm
  • External Length / Height: 10.4mm
  • External Width: 31.75mm
  • Isolation Voltage: 5kV
  • No. of Outputs: 2Outputs
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -20°C
  • Power Rating: 3W
  • Weight: 20g
