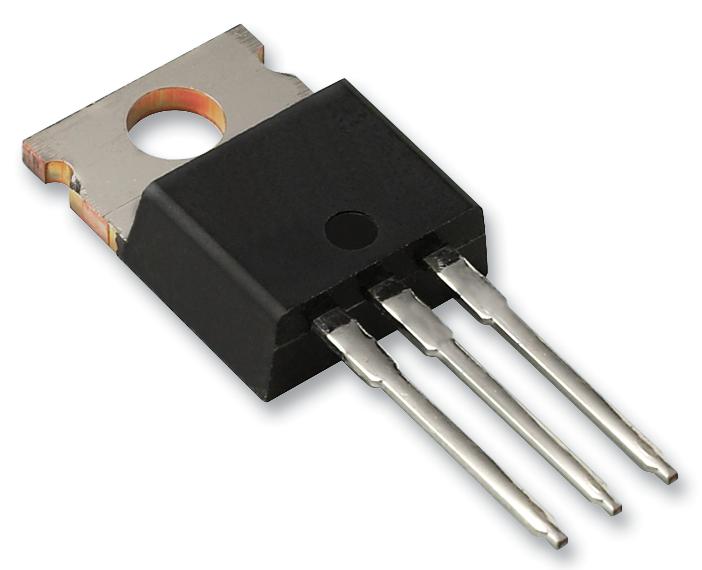

IXYS SEMICONDUCTOR - IXTP16N50P - Power MOSFET, PolarFET, N Channel, 500 V, 16 A, 0.4 ohm, TO-220, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 16A
- Drain Source Voltage Vds: 500V
- On Resistance Rds(on): 0.4ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 5.5V
- Power Dissipation Pd: 300W
- Transistor Case Style: TO-220
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (12-Jan-2017)
- Capacitance Ciss Typ: 2250pF
- Current Id Max: 16A
- Junction to Case Thermal Resistance A: 0.42°C/W
- N-channel Gate Charge: 43nC
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Reverse Recovery Time trr Max: 400ns
- Termination Type: Through Hole
- Voltage Vds Typ: 500V
- Voltage Vgs Max: 30V
- Voltage Vgs Rds on Measurement: 10V
