IXYS SEMICONDUCTOR - IXFK48N50 - Power MOSFET, N Channel, 500 V, 48 A, 0.1 ohm, TO-264, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 48A
- Drain Source Voltage Vds: 500V
- On Resistance Rds(on): 0.1ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 4V
- Power Dissipation Pd: 500W

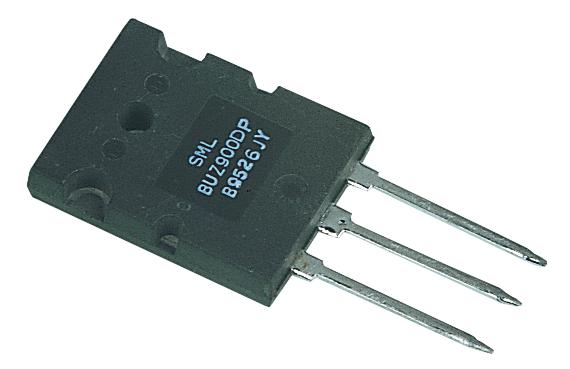

- Transistor Case Style: TO-264
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (12-Jan-2017)
- Current Id Max: 48A
- Current Temperature: 25°C
- Full Power Rating Temperature: 25°C
- No. of Transistors: 1
- On State Resistance Max: 100mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 192A
- Voltage Vds Typ: 500V
- Voltage Vgs Max: 4V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 4V
