Description

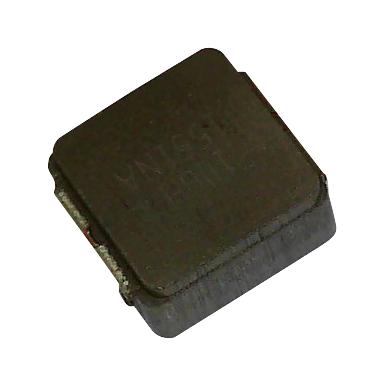

VISHAY - IHLP2020CZER220M11 - Power Inductor (SMD), 22 µH, 1.9 A, Shielded, 1.7 A, IHLP-2020CZ-11
- Inductance: 22µH
- RMS Current (Irms): 1.9A
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.7A
- Product Range: IHLP-2020CZ-11 Series
- Power Inductor Case: 5.49mm x 5.18mm x 3mm
- DC Resistance Max: 0.27ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- External Depth: 5.18mm
- External Length / Height: 3mm
- External Width: 5.49mm
- Inductor Type: High Current
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
